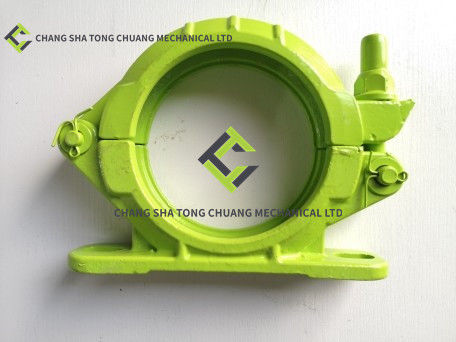

Zoomlion Concrete Pump Truck Accessories Pipe Clamp 125B VI With Seat Two Holes / Green

Product Description

Design and Structure

Specific Model and Dimensions

The Pipe Clamp 125B VI is designed specifically for use in Zoomlion concrete pump trucks. The "125B" likely indicates a specific size or compatibility dimension related to the pipes it secures. This clamp is engineered to fit and tightly hold pipes of a corresponding diameter within the pump - truck's pipeline system.

Two - Hole and Base Design

Featuring a two - hole configuration, this pipe clamp allows for easy and secure attachment. The two holes are strategically placed to enable the use of bolts or other fasteners, ensuring a stable connection to the supporting structure. The integrated base provides additional stability and a larger contact area with the pipe, distributing the clamping force evenly. This design helps prevent damage to the pipe surface while maintaining a firm grip, even under the high - pressure and vibrating conditions of concrete pump - truck operation.

Distinctive Green Color

The green color of the pipe clamp is not just for aesthetics. It may serve as a visual identifier, making it easy to distinguish from other components in the pump - truck system. This can be particularly useful during maintenance, inspection, or replacement processes, allowing technicians to quickly identify the correct part.

Working Principle

Pipe Securement

The primary function of the Pipe Clamp 125B VI is to secure pipes in place. When tightened using bolts through the two holes, the clamp exerts a uniform pressure around the pipe. This pressure creates a frictional force that prevents the pipe from moving or vibrating loose. In the context of a concrete pump truck, where pipes are subjected to high - pressure concrete flow and mechanical vibrations, this securement is crucial to maintain the integrity of the pipeline system and prevent leaks

Vibration Dampening

The design of the clamp, especially with its base, helps to dampen vibrations. As the concrete pump truck operates, the pipes can experience significant vibrations due to the pumping action. The pipe clamp's construction absorbs and reduces these vibrations, further protecting the pipes and their connections from damage over time.

Performance Features

High - Strength Clamping

The Pipe Clamp 125B VI is made from high - quality materials, ensuring a high - strength clamping force. It can withstand the forces exerted on the pipes during concrete pumping, keeping them firmly in position. This strength is essential for preventing pipe movement that could lead to leaks or even pipeline failures.

Corrosion Resistance

Given the often - harsh working environment of concrete pump trucks, which may include exposure to moisture, chemicals in the concrete, and other corrosive elements, the pipe clamp is designed with corrosion - resistant properties. This ensures a long service life, reducing the need for frequent replacements and maintenance costs.

Easy Installation

The two - hole design simplifies the installation process. Technicians can quickly and easily attach the clamp to the pipe and the supporting structure using standard tools. This ease of installation not only saves time during initial setup or replacement but also makes maintenance more efficient.
