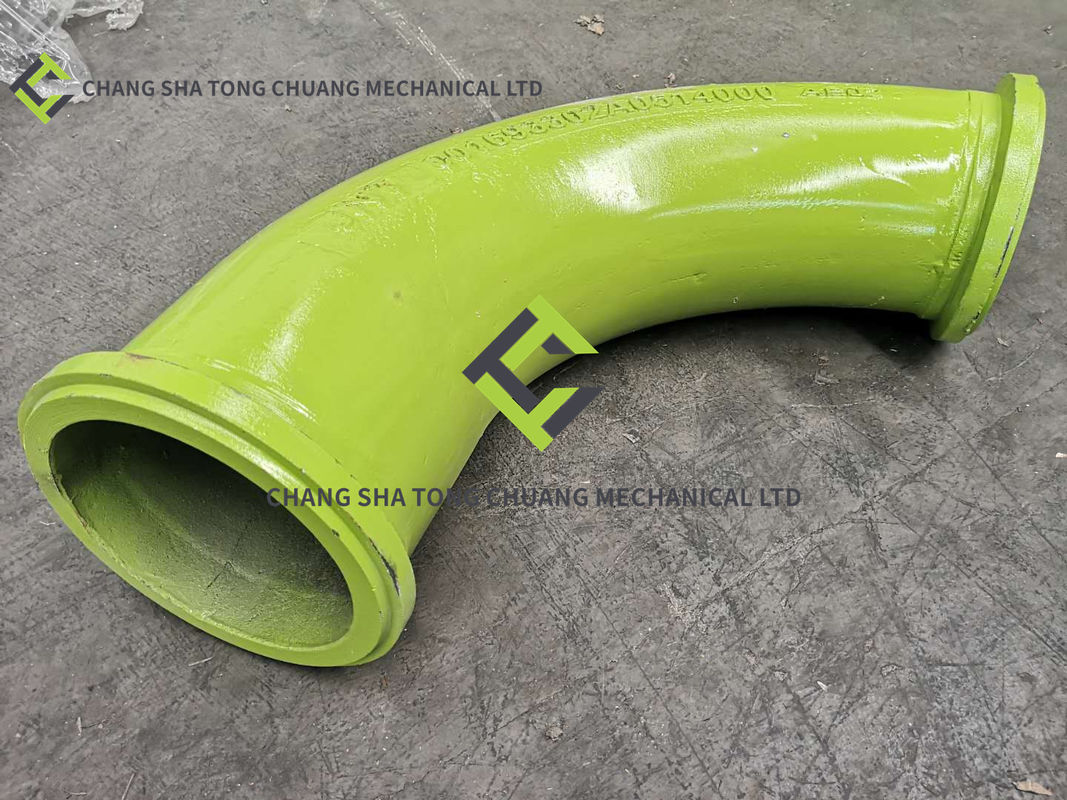

Zoomlion Concrete Pump Truck Accessories No. 2 Bend Pipe Jinnaite A0514000 Outer Arc 870mm

Product Description

Design and Structure

Precise Geometry

The No.2 bend pipe, model Jinnaiter A0514000, is engineered with a focus on precise geometry. The outer arc length of 870mm is carefully calculated to optimize the flow of concrete within the pump truck system. This specific arc length allows for a smooth transition of the concrete flow, reducing the risk of blockages and ensuring efficient pumping operations. The curvature of the bend is designed to match the overall layout of the concrete pump truck's pipeline system, enabling seamless integration.

High - Quality Materials

Manufactured by Jinnaiter, this bend pipe is crafted from high - quality materials. The choice of materials is crucial as it needs to withstand the abrasive nature of concrete and the high - pressure environment during pumping. Typically, it is made from wear - resistant steel alloys that offer excellent strength and durability. These materials are capable of enduring the continuous impact and friction of the flowing concrete, ensuring a long service life for the bend pipe.

Working Principle

Flow Redirection

The primary function of the No.2 bend pipe is to redirect the flow of concrete. As the concrete is pumped through the pipeline system of the concrete pump truck, the bend pipe changes the direction of the flow. The 870 - mm outer arc is designed to guide the concrete smoothly around the bend, minimizing turbulence. This smooth redirection is essential for maintaining the integrity of the concrete mixture and preventing segregation of its components.

Pressure Management

During the pumping process, the bend pipe also plays a role in managing pressure. The well - designed arc helps to distribute the pressure evenly as the concrete passes through the bend. This prevents excessive pressure buildup at the bend, which could otherwise lead to pipe failures or reduced pumping efficiency. By effectively managing the pressure, the bend pipe contributes to the overall stable operation of the concrete pump truck.

Performance Features

High Wear Resistance

Due to its high - quality material construction, the Jinnaiter A0514000 bend pipe exhibits excellent wear resistance. The wear - resistant steel alloys can withstand the abrasive action of the concrete particles over an extended period. This means that the bend pipe can be used in numerous concrete pumping projects without significant wear, reducing the frequency of replacements and associated costs.

Efficient Flow

The 870 - mm outer arc design ensures efficient flow of concrete. The smooth curvature allows the concrete to pass through the bend with minimal resistance, maintaining a consistent flow rate. This efficient flow is beneficial for both the speed of the pumping operation and the quality of the concrete placement. It helps to ensure that the concrete is delivered to the desired location in a timely and uniform manner.

The 870 - mm outer arc design ensures efficient flow of concrete. The smooth curvature allows the concrete to pass through the bend with minimal resistance, maintaining a consistent flow rate. This efficient flow is beneficial for both the speed of the pumping operation and the quality of the concrete placement. It helps to ensure that the concrete is delivered to the desired location in a timely and uniform manner.

Compatibility

As a part of Zoomlion concrete pump truck accessories, the No.2 bend pipe is designed to be highly compatible with the existing pipeline systems of Zoomlion concrete pump trucks. It can be easily installed and integrated into the pump's pipeline network, ensuring seamless operation. This compatibility simplifies the maintenance and replacement process, as it can be quickly swapped out when needed.
