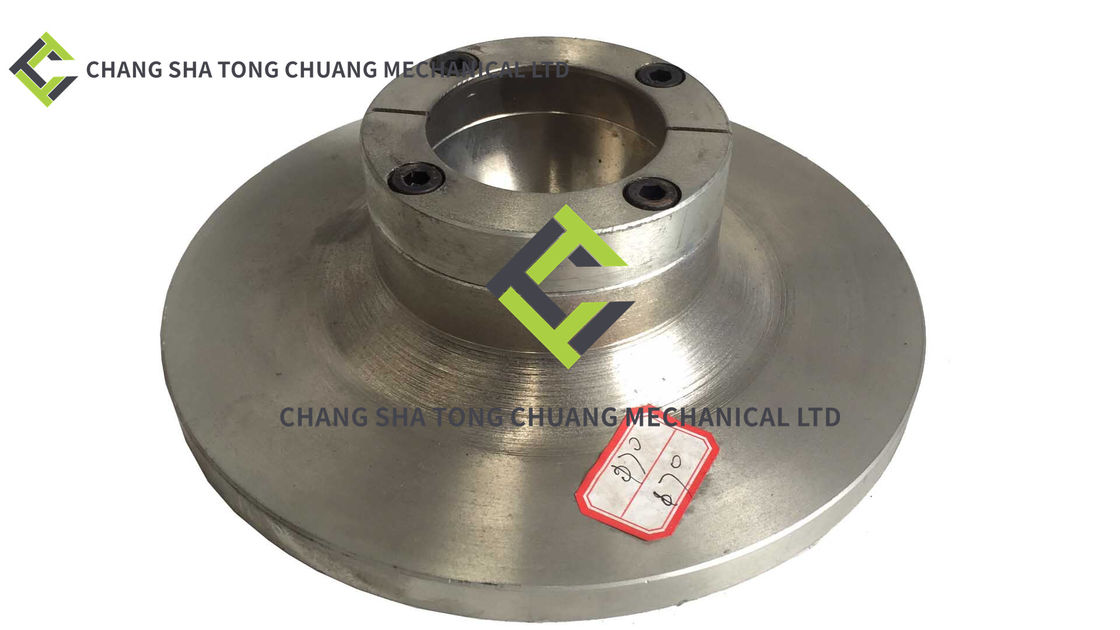

Zoomlion Concrete Truck Mounted Pump Accessories Hinge Seat With A Diameter Of 70

Product Description

Design and Structure

Dimension and Precision: The φ70 hinge seat is meticulously designed with a diameter of 70mm. This precise dimension is crucial for its proper integration into the mechanical system of the Zoomlion concrete truck - mounted pump. The manufacturing process maintains tight tolerances to ensure a perfect fit with other components such as the pump's articulated arms or booms.

Material Quality: Constructed from top - grade materials, it is often made of high - strength alloy or a durable composite material. These materials are carefully selected for their outstanding mechanical properties. The high - strength nature of the material endows the hinge seat with the ability to withstand substantial forces. Additionally, it provides excellent resistance to wear and fatigue, which are essential for withstanding the demanding and repetitive operations of the concrete pump.

Structural Design: The hinge seat's shape is designed with great attention to detail. It incorporates well - placed connection points and mounting holes. These features not only simplify the assembly process but also ensure a secure and stable connection to other pump components. The overall structural design is optimized to evenly distribute forces, minimizing stress concentrations and enhancing the overall stability of the connection.

Working Principle

Connection and Movement Facilitation: The fundamental function of the φ70 hinge seat is to act as a connection hub. It enables the different components of the concrete truck - mounted pump, like the boom segments, to pivot and rotate relative to each other. This pivotal movement is essential for the pump to achieve a wide range of operating positions. The design of the hinge seat ensures smooth and precise movement, allowing for accurate concrete placement in various construction settings.

Force Transmission Mechanism: During the operation of the pump, numerous forces are at work. The weight of the boom, the pressure generated during the concrete - pumping process, and the dynamic forces due to the movement of the vehicle are all transmitted through the hinge seat. It serves as a reliable medium to transfer these forces between components. By effectively distributing the forces across its structure, the hinge seat helps maintain the equilibrium and stability of the pump.

Performance Features

Substantial Load - Bearing Capacity: With a diameter of φ70, the hinge seat is designed to handle heavy loads. It has a high load - bearing capacity, enabling it to support the weight and forces exerted during the operation of the concrete truck - mounted pump without succumbing to deformation or failure. This load - bearing ability is vital for the pump's safe and efficient operation, particularly when dealing with high - volume concrete pumping over extended periods.

Friction - Minimizing and Durability: The surface of the hinge seat is engineered to reduce friction. This can be achieved through advanced surface treatments, such as coatings or the use of specialized materials that have low - friction properties. Minimizing friction results in smoother movement of the connected parts and significantly reduces wear. Consequently, the hinge seat has a long - service - life expectancy, reducing the frequency of replacements and maintenance, which ultimately saves both time and cost.

Resilience to Harsh Conditions: Concrete truck - mounted pumps operate in a range of challenging environments. The φ70 hinge seat is designed to be resilient to these conditions. It has excellent resistance to corrosion caused by chemicals present in the concrete, as well as to moisture and dust. This resistance ensures that the hinge seat remains in optimal working condition over an extended period, maintaining the pump's performance and reliability.
