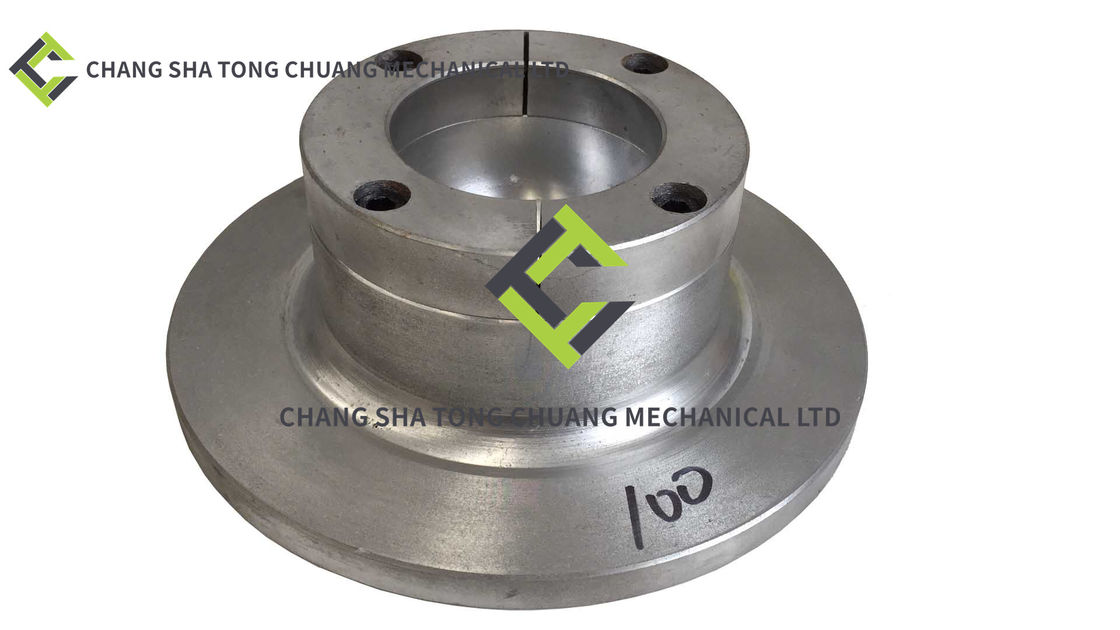

Zoomlion Concrete Pump Truck Accessories Hinge Seat With A Diameter Of 100

Product Description

Design and Structure

Precise Dimensions: The hinge seat is designed with a diameter of φ100, which is precisely tailored to fit the specific connection points of the Zoomlion concrete pump truck. This accurate dimensioning ensures a snug and stable fit, enabling it to work seamlessly with other components.

Rigid Structure: It features a robust and durable structure, usually made of high - strength cast steel or alloy materials. The material selection provides excellent mechanical properties, such as high tensile strength and impact resistance, which can withstand the large forces and vibrations generated during the operation of the concrete pump truck.

Complex Geometry: The hinge seat has a complex geometric shape with multiple connection points and mounting holes. These are designed to allow for easy attachment to other parts of the pump truck, such as the boom, outriggers or other structural components, facilitating smooth movement and connection between different parts.

Working Principle

Connection and Rotation: The main function of the φ100 hinge seat is to serve as a connection point and enable rotation. It connects different components of the concrete pump truck, allowing them to move relative to each other around the hinge axis. For example, in the case of the boom, the hinge seat allows the boom to be raised, lowered and rotated, providing the necessary flexibility and range of motion for the pump truck to operate in different working conditions.

Force Transmission: It also plays a crucial role in transmitting forces. During the operation of the pump truck, various forces such as the weight of the boom, the pressure from the concrete pumping process and the dynamic forces generated by the movement of the vehicle are all transmitted through the hinge seat. It distributes and transfers these forces evenly to the connected components, ensuring the stability and reliability of the overall structure.

Performance Features

High Load Capacity: The hinge seat is capable of withstanding high loads. It can bear the substantial weights and forces exerted on it during the pumping and operating processes of the concrete pump truck, ensuring that it does not deform or fail under normal working conditions, thus guaranteeing the safety and stability of the equipment.

Low Friction and Wear: The surface of the hinge seat is usually treated with special processes to reduce friction. This not only helps to reduce energy loss during rotation but also minimizes wear, prolonging the service life of the hinge seat. The low wear rate means that it requires less frequent maintenance and replacement, reducing the overall operating costs of the pump truck.

Excellent Corrosion Resistance: Given the harsh working environment of concrete pump trucks, which often involves exposure to moisture, concrete and other corrosive substances, the hinge seat is designed to have excellent corrosion resistance. The material and surface treatment used can effectively prevent rust and corrosion, maintaining the performance and integrity of the hinge seat over a long period.
