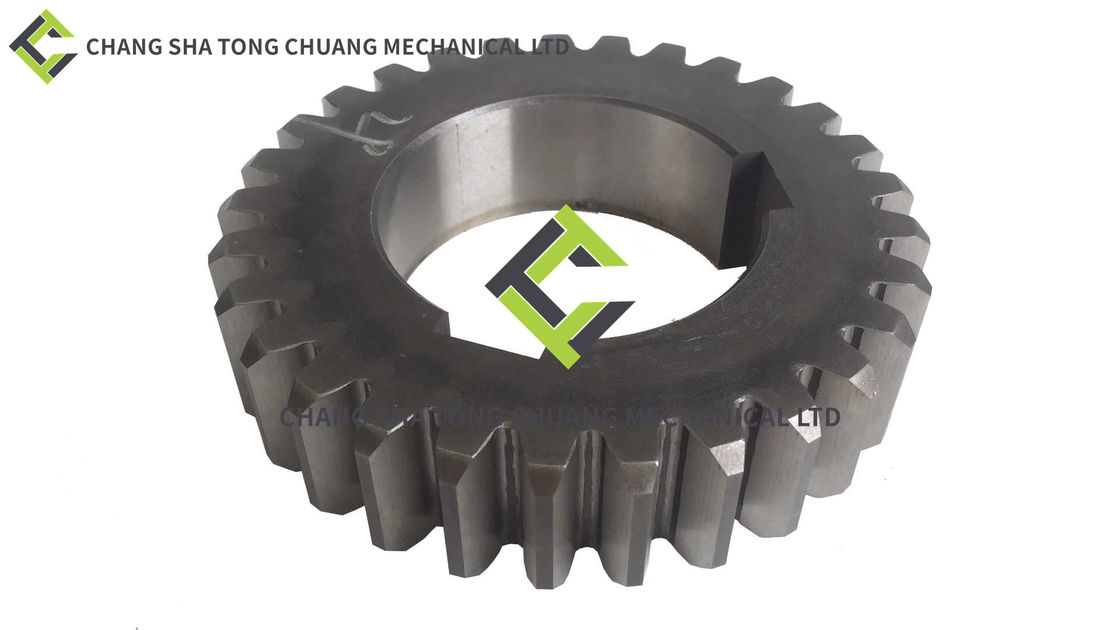

Zoomlion Pump Truck Accessories Transfer Case Three-Axis Gear 29 Teeth for Sibao

Design and Structure

Precision - Engineered Design: The Sibo transfer case third - shaft gear with 29 teeth is designed with a high level of precision. The 29 - tooth configuration is carefully determined through detailed engineering calculations to achieve the most suitable gear ratio for the power - transmission requirements of the concrete pump truck. The overall design of the gear, including its shape, dimensions, and the details of the teeth, is optimized to ensure a precise fit within the transfer case. The teeth are machined with a high degree of accuracy to enable seamless meshing with other gears, which is essential for efficient power transfer.

High - Quality Material: It is constructed from top - notch materials. These materials are selected for their excellent mechanical properties such as high strength and resistance to wear and fatigue. The strength of the material allows the gear to withstand the heavy loads and high - torque conditions that are typical during the operation of a concrete pump truck. The resistance to wear and fatigue ensures a long - service life, even in the harsh environment of a construction site.

Working Principle

Power Transmission: The main function of this third - shaft gear is to transmit power within the transfer case. The power from the engine is transferred through a series of components and arrives at this gear. As the 29 - tooth gear rotates, it engages with other gears in the transfer case, transmitting rotational energy at a specific speed and torque ratio. This power transfer is vital for the proper operation of the hydraulic systems and other mechanical components of the concrete pump truck that are involved in the pumping process and the movement of the boom.

Synchronized Rotation: The gear rotates in a synchronized manner with other gears in the transfer case. The precise meshing of its 29 teeth with the teeth of other gears ensures a smooth and consistent rotation. This synchronization is crucial for the stable operation of the pump truck. Any disruption in the rotation of the gears can lead to inefficient power transfer, vibrations, and potential damage to the equipment.

Performance Features

Effective Torque Transmission: With its 29 - tooth design and robust construction, the gear is capable of effectively transmitting the required torque. The concrete pump truck demands a significant amount of torque for its operations, and this gear can handle these loads without slippage or premature wear. The effective torque - transmission ability ensures that power is smoothly transferred to the necessary components, enabling the proper functioning of the pump truck's operations.

Durability: Thanks to the high - quality materials and precise manufacturing, the gear is highly durable. It can endure the heavy - duty operations of the pump truck, including continuous use, exposure to dust and debris, and the vibrations during operation. The durability of the gear reduces the need for frequent replacements and maintenance, saving both time and costs for the users.

Compatibility: This gear is designed to be compatible with the Zoomlion concrete pump truck's transfer case and other related components. It is engineered to fit precisely and work in harmony with other gears and mechanical parts in the transfer case. This compatibility simplifies the installation and replacement process, making it more convenient for maintenance technicians to carry out servicing.
