Construction Equipment V18/V20 Electric Curved Arm High-Altitude Work Platform

Name: Construction Equipment V18/V20 Electric Curved Arm High-Altitude Work Platform
Brand: Changsha Tongchuang Mechanical Co., Ltd.
SKU: V18/V20
Price: 995.00 USD
Availability: InStock

Brand Name:	Domestic
Model Number:	V18/V20
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	7days
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Changsha，Hunan，China

Color:

Green

Drive Mode.:

2*2

Weight:

9100kg

Battery:

48V/420Ah

Packaging Details:

Standard export package

Supply Ability:

100pcs/month

Highlight:

Construction Equipment High-Altitude Work Platform

V18/V20 High-Altitude Work Platform

Curved Arm High-Altitude Work Platform

Product Description

Product Decription

The maximum working height of the electric articulated boom high-altitude work platform is 11.5 meters to 22.5 meters, and the maximum load is 350 kilograms. The design of the battery and the arm style structure provide a sustainable and flexible solution for entering elevated areas. According to your work needs, lithium batteries and lead-acid batteries can be optionally equipped.

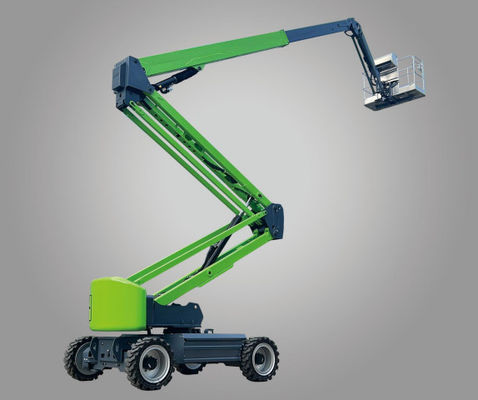

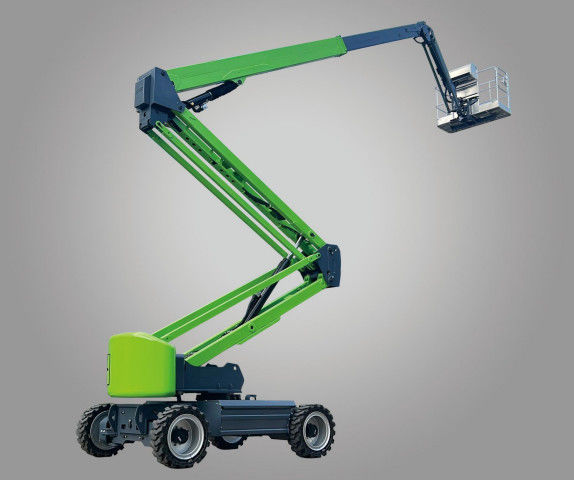

Product Picture

Construction Equipment V18/V20 Electric Curved Arm High-Altitude Work Platform 0

Construction Equipment V18/V20 Electric Curved Arm High-Altitude Work Platform 1

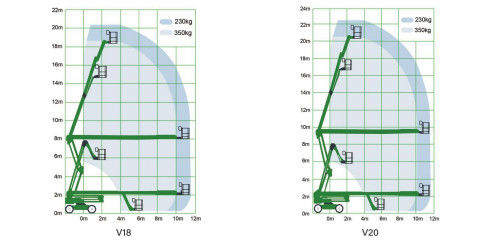

Product parameters

Model	V18	V20
Type
Maximum working height	20.2m	22.5m
Maximum platform height	18.2m	20.5m
Maximum crossing height	8.0m	9.4m
Maximum homework radius	11.1m	11.8m
Platform size (length x width)	1.810.76m	1.8*0.76m
Vehicle Length - Collection	8.49m	8.99m
Vehicle width	2.49m	2.49m
Vehicle Height - Collection	2.38m	2.38m
wheelbase	2.5m	2.5m
Ground clearance (center)	0.3m	0.3m
Performance
Rated bearing capacity	230kg/350kg	230kg/350kg
Number of people supported by the platform	2-3	2-3
Platform rotation range	±80°	±80°
Rotary table rotation	±70°	±70°
Range of boom amplitude	360 ° discontinuous	360 ° discontinuous
Driving speed (receiving status)	4.8km/h	4.5km/h
Driving and climbing slopes	45%	40%
Maximum working slope	3°	3°
Outer turning radius	5.0m	5.0m
Drive steering form	4×2	4X2
Whole machine weight	9100kg	10000kg
tyre	33×12-20	33×12-20
Power
Battery	48V/420Ah	48V/420Ah
Pump motor power	12kw	12kw
Power of walking motor	3.3kw	3.3kw
Control voltage	24V 48V/60A	24V 48V/60A
Charger“	105L	105L
Hydraulic oil tank	12V electric	12V electric
Match
Lithium battery	Optional
Solid seamless tire	Optional
