High Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in Green

Name: High Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in Green
Brand: Changsha Tongchuang Mechanical Co., Ltd.
SKU: V12M
Price: 995.00 USD
Availability: InStock

Brand Name:	Domestic
Model Number:	V12M
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	7days
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Changsha，Hunan，China

Color:

Green

Drive Mode.:

2*2

Weight:

3760kg

Battery:

48V/30Ah

Packaging Details:

Standard export package

Supply Ability:

100pcs/month

Highlight:

High Altitude Work Platform

Electric Curved Arm Altitude Work Platform

Construction Equipment Altitude Work Platform

Product Description

Product Decription

The maximum working height of the electric articulated boom high-altitude work platform is 11.5 meters to 22.5 meters, and the maximum load is 350 kilograms. The design of the battery and the arm style structure provide a sustainable and flexible solution for entering elevated areas. According to your work needs, lithium batteries and lead-acid batteries can be optionally equipped.

Product Picture

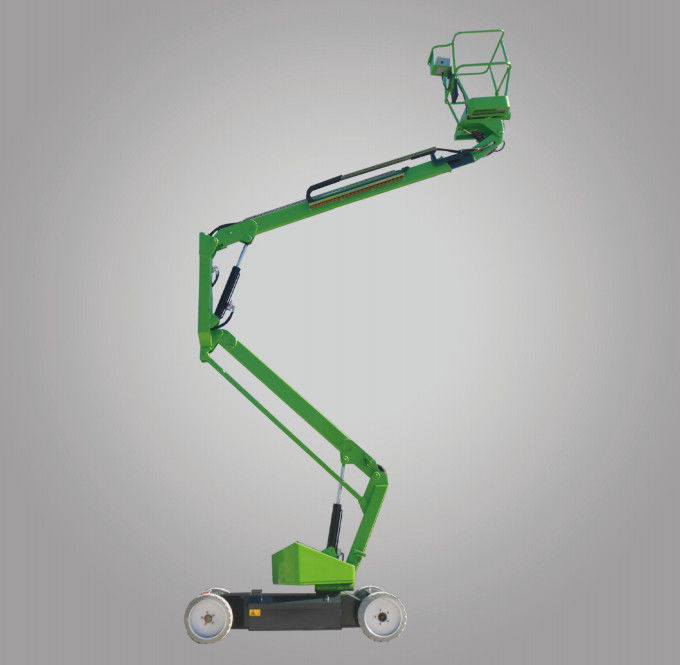

High Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in Green 0

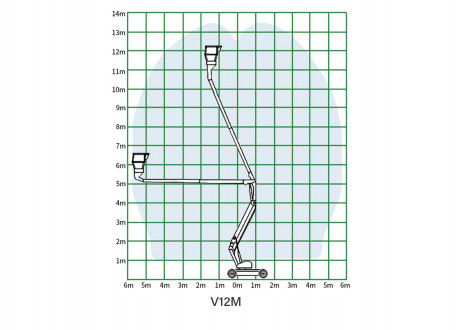

High Altitude Work Platform for Construction Equipment 3760kg Electric Curved Arm in Green 1

Product parameters

Model	V12M
Type
Maximum working height	13.5m
Maximum platform height	11.5m
Maximum crossing height	5.4m
Maximum homework radius	5.63m
Platform size (length x width)	1.26*0.712m
Vehicle Length - Collection	4.04m
Vehicle width	1.50m
Vehicle Height - Collection	2.05m
wheelbase	2m
Ground clearance room (center)	0.12m
Performance
Rated bearing capacity	215kg
Number of people supported by the platform	2
Platform rotation range	±90°
Rotary table rotation	360 ° discontinuous
Lifting speed of work platform	85~100s
Decrease speed of work platform	70~85s
Driving speed (highway)	4-5km/h
Driving speed (low speed)	0.8-1.2km/h
Maximum height of the driving platform	11.5m
Maximum climbing gradient	36%
Whole machine weight	3760kg
power
Battery	8×6V(220Ah)
Charger	48V/30A
Tire specifications	231016()/22916()
Tilt warning angle	2
Tilt warning angle	3
Hydraulic oil tank	23L
Emergency power system	Manual operation
Match
Lithium battery	Optional
Solid seamless tire	Optional
