Electric Curved Arm Altitude Work Platform for 4800kg Load and Battery 48V/320Ah in Industrial Sector

Name: Electric Curved Arm Altitude Work Platform for 4800kg Load and Battery 48V/320Ah in Industrial Sector
Brand: Changsha Tongchuang Mechanical Co., Ltd.
SKU: V09/V11
Price: 995.00 USD
Availability: InStock

Brand Name:	Domestic
Model Number:	V09/V11
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	7days
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Changsha，Hunan，China

Color:

Green

Drive Mode.:

2*2

Weight:

4800kg

Battery:

48V/320Ah

Packaging Details:

Standard export package

Supply Ability:

100pcs/month

Highlight:

Curved Arm Altitude Work Platform

4800kg Load Altitude Work Platform

Product Description

Product Decription

The maximum working height of the electric articulated boom high-altitude work platform is 11.5 meters to 22.5 meters, and the maximum load is 350 kilograms. The design of the battery and the arm style structure provide a sustainable and flexible solution for entering elevated areas. According to your work needs, lithium batteries and lead-acid batteries can be optionally equipped.

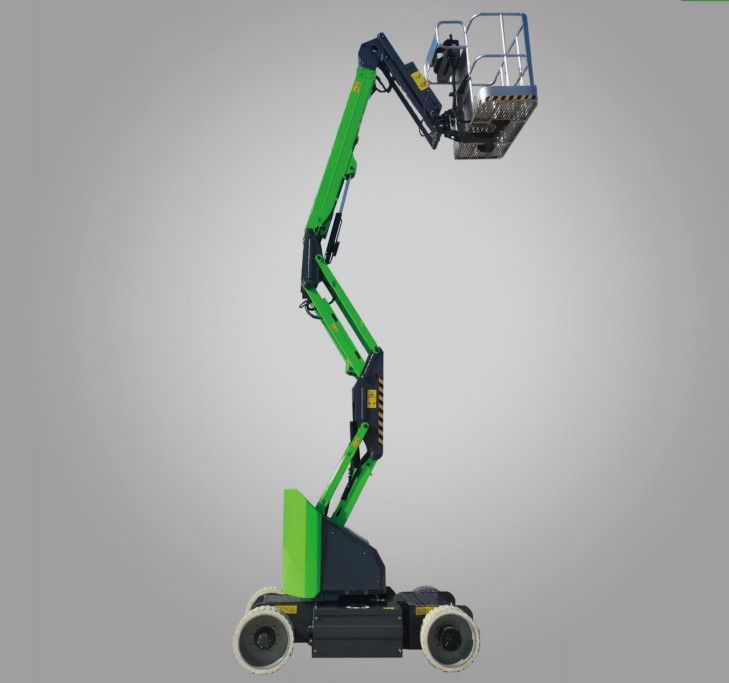

Product Picture

Electric Curved Arm Altitude Work Platform for 4800kg Load and Battery 48V/320Ah in Industrial Sector 0

Product parameters

Model	V09	V11
Type
Maximum working height	11.5m	12.52m
Maximum platform height	9.5m	10.52m
Maximum crossing height	4.5m	4.65m
Maximum homework radius	6.2m	6.5m
Platform size (length x width)	1.4*0.7m	1.4*0.7m
Vehicle Length - Collection	5.2m	5.6m
Vehicle width	1.27m	150m
Vehicle Height - Collection	2.0m	2.0m
wheelbase	1.75m	1.95m
Ground clearance room (center)	0.14m	0.14m
Performance
Rated bearing capacity	200kg	200kg
Number of people supported by the platform	2	2
Platform rotation range	±80	±80
Rotary table rotation	±70°	±70°
Range of boom amplitude	355°	355°
Driving speed (receiving status)	4.8km/h	4.8km/h
Driving and climbing slopes	35%	35%
Maximum working slope	3°	3°
Outer turning radius	3.3m	4.08m
Drive steering form	2×2	2×2
Whole machine weight	4800kg	5200kg
tyre	22×7X17	22×7×17
Power
Battery	48V/320Ah	48V/320Ah
Pump motor power	4kw	4kw
Power of walking motor	3.3kw	3.3kw
Control voltage	24v	24v
Charger	48v/35A	48v/35A
Hydraulic oil tank	20L	20L
Emergency power system	24V electric	24V electric
Match
Lithium battery	Optional	Optional
Solid seamless tire	Optional	Optional
