4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery

Name: 4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery
Brand: Changsha Tongchuang Mechanical Co., Ltd.
SKU: Z10W/Z12W/Z14W
Price: 995.00 USD
Availability: InStock

Brand Name:	Domestic
Model Number:	Z10W/Z12W/Z14W
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	7days
Payment Terms:	L/C, D/A, D/P, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Changsha，Hunan，China

Color:

Green

Drive Mode.:

4*2

Weight:

2550kg

Battery:

8x6V/200Ah

Packaging Details:

Standard export package

Supply Ability:

100pcs/month

Highlight:

Scissor Type Aerial Work Platform

Liquid Driven Aerial Work Platform

8x6V/200Ah Aerial Work Platform

Product Description

Product Decription

The platform height of the liquid driven scissor type aerial work platform is lower than that of the arm type aerial work platform, reaching up to 5.8-13.8 meters. Powered by batteries, more environmentally friendly. Due to the absence of exhaust emissions or loud noise during operation, they are very suitable for indoor operation.

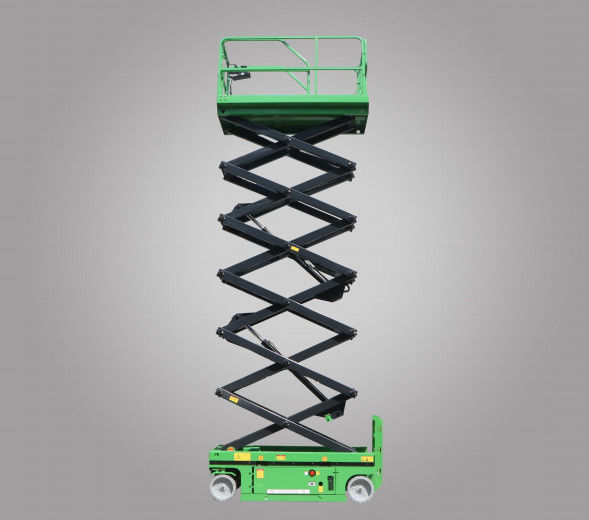

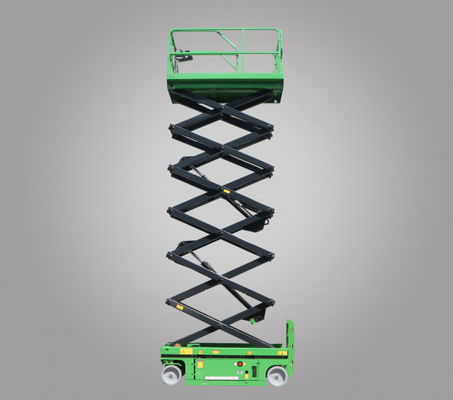

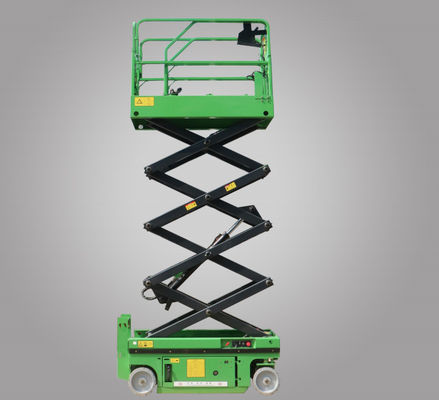

Product Picture

4*2 Drive Mode Aerial Work Platform Z10W Z12W Liquid Driven Scissor Type with 8x6V/200Ah Battery 0

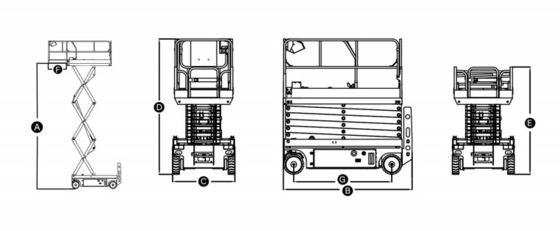

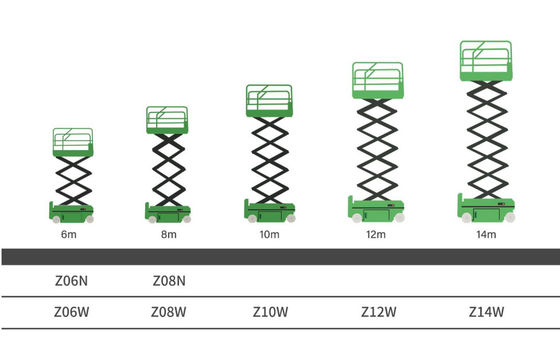

Model	Z10W	Z12W	Z14W
Size
Maximum working height	11.8m	13.8m	15.8m
Maximum platform height	9.8m	11.8m	13.8m
Platform length	2.27m	2.27m	2.7m
Platform width	1.12m	1.12m	1.11m
Vehicle length	2.43m	2.43m	2.85m
vehicle width	1.21m	1.21m	1.31m
Overall height (unfolded national fence)	2.47m	2.6m	2.6m
Overall height (folded fence)	1.93m	2.06m	2.06m
platform extension size	0.9m	0.9m	0.9m
wheelbase	1.87m	1.87m	2.24m
Ground clearance (retracted/raised)	0.11m/0.02m	0.11m/0.02m	0.12m/0.02m
Performance
Maximum number of employees	2	2	2
Safe working load	450kg	320kg	230kg
Extended platform security workload	113kg	113kg	113kg
Driving height	High altitude driving	High altitude driving	High altitude driving
Maximum climbing ability (retracted)	25%	25%	25%
Inner/outer turning radius	0/2.2m	0/2.2m	0/2.5m
Increase/decrease speed	3-5m/min	3-5m/min	3-5m/min
Drive mode	4×2	4×2	4x2
Tire type	Solid seamless tire	Solid seamless tire	Solid seamless tire
Tire size	φ381×127mm	φ381×127mm	φ381×127mm
Power
Battery	24V/200Ah	24V/200Ah	24V/240Ah
Charger	24V/36A	24V/36A	24V/36A
Hydralic System
Hydraulic oil capacity	20L	25L	30L
Weight
Total Weight	2550kg	2900kg	3570kg
