Multiplex Valve Sheet Of Concrete Pump Truck Boom Frame 32O 40/40/EA2-G24 1010302607

Minimum Order Quantity : 1piece Price : 400$-500$
Packaging Details : Export standards Delivery Time : 1days
Payment Terms : L/C, T/T Supply Ability : 150pcs/month
Place of Origin: Chang sha China Brand Name: HAWE
Model Number: 32O 40/40/EA2-G24

Detail Information

Adapted Models: Concrete Pump Truck Color: Black
Factory Code: 1010302607 Model: -32O 40/40/EA2-G24
Adaptation: Quantitative Pump Use Kind: Concrete Pump Spare Parts
Oil Pump: Constant Rate Pump Applicable Model: Zoomlion、SANY,PUTZMEISTER,Schwing
Voltage: DC 24V Weight: 4kg
High Light:

32O Multiplex valve sheet

,

40/40/EA2-G24 Multiplex valve sheet

,

Concrete Pump Truck Boom Frame

Product Description

Product Description:

The HAWE multi-way valve plate, model -32O 40/40/EA2-G24, with factory code 1010302607, in a concrete boom pump truck serves a crucial function in controlling the movement and operation of the boom assembly. It plays a key role in facilitating the precise and efficient deployment of the boom for concrete placement at construction sites.

The functionality of the HAWE -32O 40/40/EA2-G24 multi-way valve plate includes:

  1. Boom control: The multi-way valve plate controls the hydraulic flow to various boom cylinders, enabling operators to extend, retract, lift, and lower the boom sections. It allows for precise and independent control of each boom cylinder, facilitating accurate positioning of the boom for concrete placement.

  2. Multi-function capability: The -32O 40/40/EA2-G24 multi-way valve plate is designed to handle multiple hydraulic functions simultaneously. It can control not only the boom extension and retraction but also other auxiliary functions such as boom folding, unfolding, slewing, and boom tip articulation. This versatility provides flexibility in configuring the boom for different concrete placement requirements.

  3. Flow regulation and pressure control: The multi-way valve plate regulates the hydraulic flow and controls the pressure supplied to the boom cylinders. It ensures smooth and controlled movement of the boom sections, preventing abrupt or uncontrolled motions that could compromise safety or concrete placement precision.

  4. Safety features: The HAWE -32O 40/40/EA2-G24 multi-way valve plate may incorporate safety features such as load-holding valves or overload protection systems. These features help prevent overloading of the boom and provide safety measures in case of hydraulic system failures or emergencies, enhancing overall job site safety.

  5. Compatibility and integration: The -32O 40/40/EA2-G24 multi-way valve plate is specifically designed for compatibility with the hydraulic system of the concrete boom pump truck. It seamlessly integrates into the overall control system, communicating with other components to ensure synchronized and coordinated boom movements during operation.

Detailed Photos:

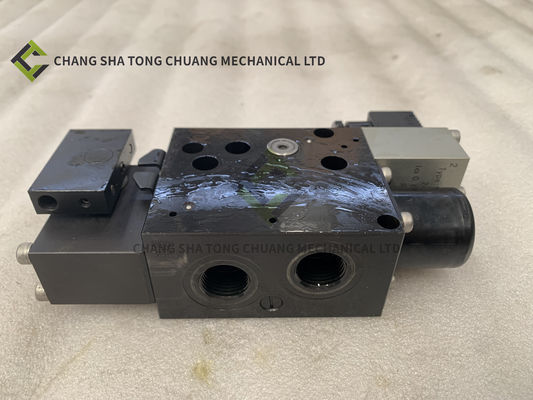

Multiplex Valve Sheet Of Concrete Pump Truck Boom Frame 32O 40/40/EA2-G24 1010302607 0

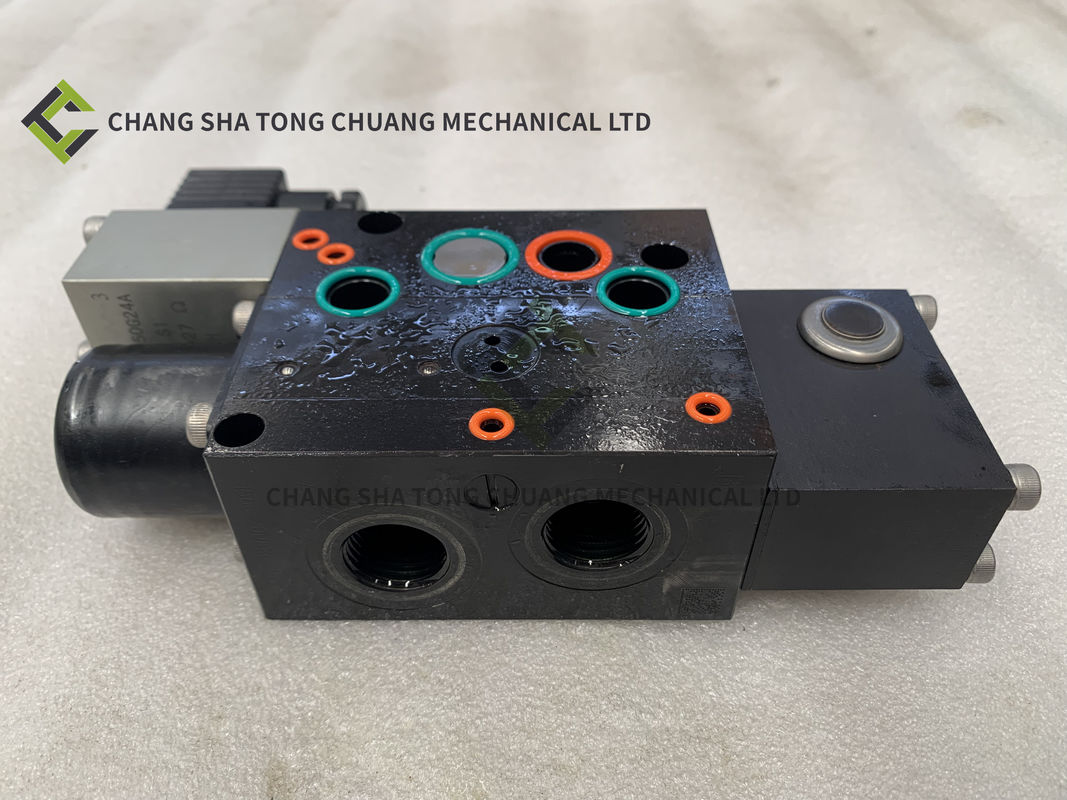

Multiplex Valve Sheet Of Concrete Pump Truck Boom Frame 32O 40/40/EA2-G24 1010302607 1

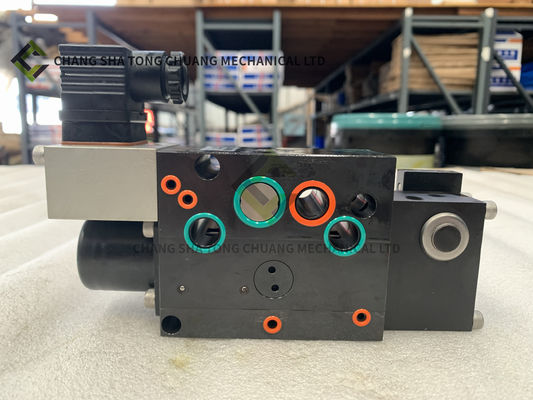

Multiplex Valve Sheet Of Concrete Pump Truck Boom Frame 32O 40/40/EA2-G24 1010302607 2

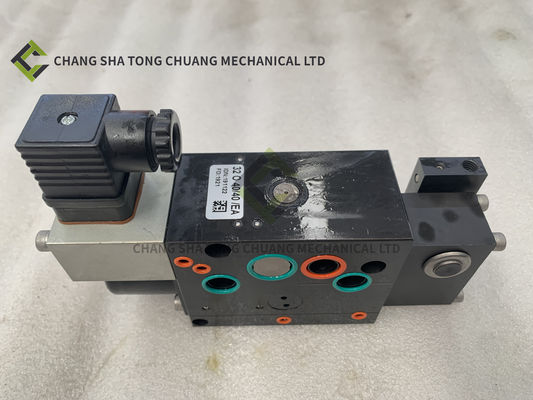

Multiplex Valve Sheet Of Concrete Pump Truck Boom Frame 32O 40/40/EA2-G24 1010302607 3

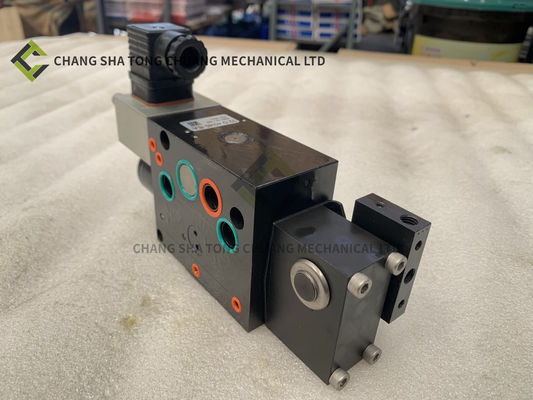

Multiplex Valve Sheet Of Concrete Pump Truck Boom Frame 32O 40/40/EA2-G24 1010302607 4

Multiplex Valve Sheet Of Concrete Pump Truck Boom Frame 32O 40/40/EA2-G24 1010302607 5
