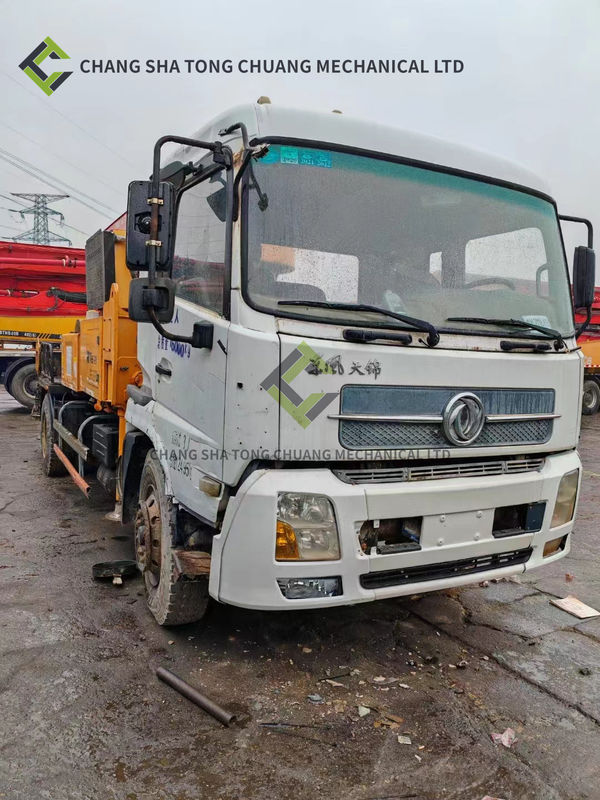

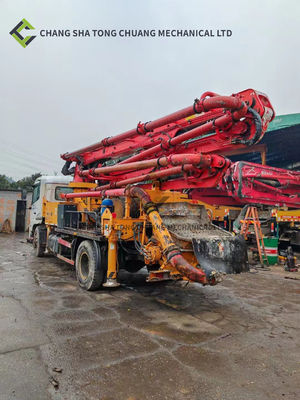

Re-Manufactured Used Concrete Pump Truck Truck-Mounted 47 Meter
Contact Person : JiLiu
Phone Number : 0086-18975137227
WhatsApp : +8618975137227
Minimum Order Quantity : | 1pc | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Standard Export Package | Delivery Time : | 18days |
Payment Terms : | T/T、L/C、D/A、D/P | Supply Ability : | 3pcs/month |
Place of Origin: | Changsha,Hunan,China | Brand Name: | SANY |
---|---|---|---|
Model Number: | SYM5165THBDD 25V8 |
Detail Information |
|||
Color: | Red + Orange | Brand: | Sany |
---|---|---|---|
Engine Power(kW): | 155KW/210PS | Maximum Speed: | 80km/h |
Arm Length: | 25 Meter | Chassis Model: | DFL1160BX5 |
Engine Type: | ISDe210 40 | Size: | 9710*2500*3500mm |
Weight: | 16000KG | Arm Vertical Height: | 24.6m |
Arm Horizontal Length: | 21m | Angle Of Rotation: | ±360 |
Axis Number: | 2 Axis | Steering Wheel Position: | Left |
High Light: | SYM5165THBDD 25V8,Used Concrete Pump Truck 25Meter,155KW Used Concrete Pump Truck |
Product Description
Total length of 9,710
Total width of 2,500
Total height of 3,500
The whole machine weight is 16,000
The fuel tank capacity is 400
Tank capacity is 300
rideability
Maximum speed 90
Leave angle of 10m / 30 km/h
Arm / leg
The number of cloth rods is 4
Vertical height of the boom is 24.6
Arm frame horizontal length 21
Arm frame with a vertical depth of 10.9
Table rotation angle is 360
The front leg spread width is 5200
Rear leg spread width 3440
Pumping device
Theoretical displacement of concrete is 70
Pump the concrete conveying pressure 6.4
Theoretical pumping times of 28
Delivery cylinder ID X stroke 200X1300
Hydraulic system type open type
System oil pressure 32
Delivery pipe diameter: 125
End hose length 3
End hose pipe diameter of 125
Chassis / engine
Chassis manufacturer DFL1160BX5
Engine model number, ISDe210 40
Engine power of 155
Emission standard national virus
