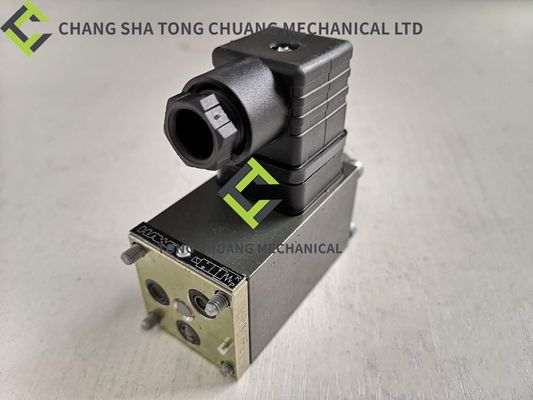

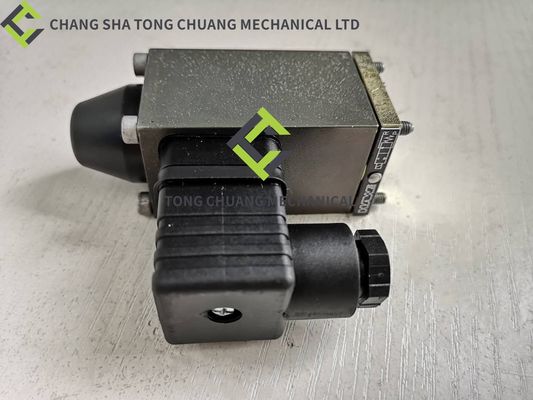

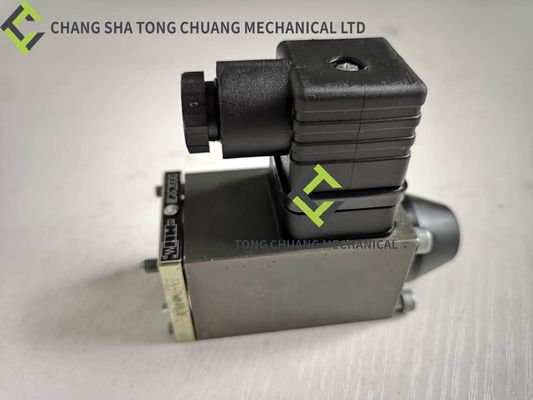

Sany And Zoomlion Concrete Pump Bypass valve GAAX035F20D44 \ WN1-F B220401000311

Product Description

The solenoid coil GAAX035F20D44WN1-F-G24(HAWE) in the multi-way valve of a concrete pump truck serves an important function in controlling the flow of hydraulic fluid within the system. Here is a description of the function and role of the solenoid coil:

1. Flow Control: The primary function of the solenoid coil is to control the opening and closing of the multi-way valve in the hydraulic system of the concrete pump truck. By energizing or de-energizing the coil, the solenoid generates a magnetic field that attracts or releases a plunger or armature. This action controls the movement of the valve's internal components, allowing for the desired flow of hydraulic fluid to specific actuators or sections of the system.

2. Directional Control: The solenoid coil also plays a role in determining the direction of hydraulic fluid flow within the multi-way valve. By activating the coil, the solenoid can change the position of the valve's spool or other control mechanisms, redirecting the flow of hydraulic fluid to different sections or circuits of the pump truck's hydraulic system. This enables the operator to control the movement and operation of the concrete pump truck's various hydraulic actuators, such as the boom, outriggers, or concrete pumping mechanism.

3. On/Off Control: The solenoid coil provides on-off control capabilities for the multi-way valve. When the coil is energized, the valve opens, allowing hydraulic fluid to flow. Conversely, when the coil is de-energized, the valve closes, stopping the flow of hydraulic fluid. This functionality allows for precise control of the hydraulic system, enabling operators to start, stop, and adjust the operation of specific hydraulic components as needed.

4. Remote Operation: The solenoid coil can be operated remotely, typically through electrical signals from a control panel or the operator's console. This allows for easy and convenient control of the multi-way valve and the associated hydraulic functions. The remote operation capability enhances the safety and efficiency of the concrete pump truck's operation, as the operator can control the hydraulic system from a distance.

Overall, the solenoid coil GAAX035F20D44WN1-F-G24(HAWE) in the multi-way valve of a concrete pump truck plays a crucial role in controlling the flow, direction, and on-off functionality of hydraulic fluid within the system. It enables precise and remote operation of the hydraulic system, contributing to the safe and efficient operation of the concrete pump truck.
