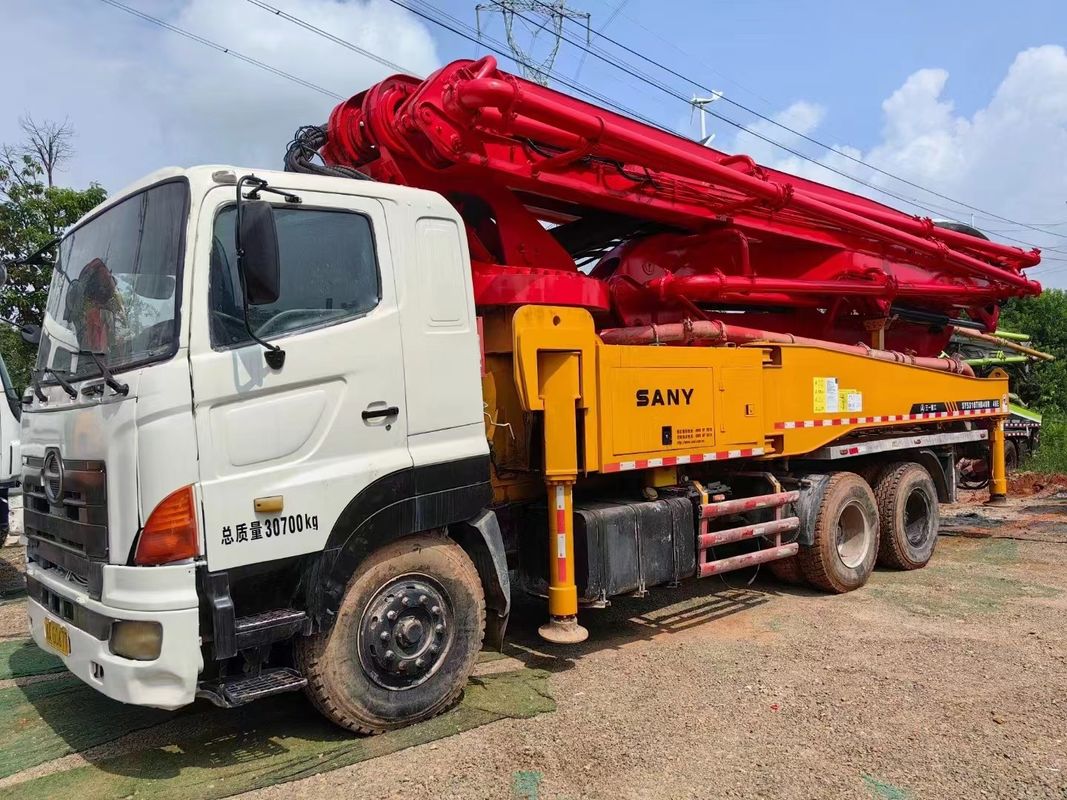

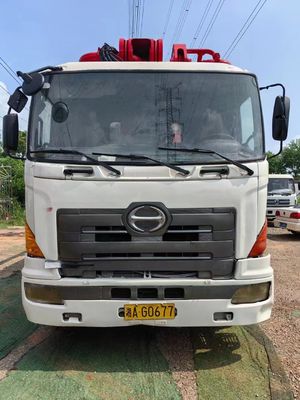

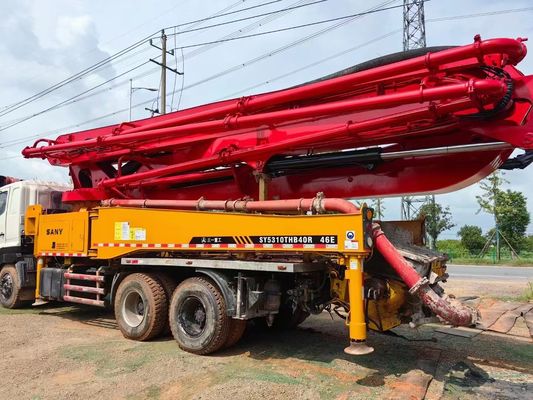

Re-Manufactured Used Concrete Pump Truck Truck-Mounted 47 Meter
Contact Person : JiLiu
Phone Number : 0086-18975137227
WhatsApp : +8618975137227
Minimum Order Quantity : | 1piece | Price : | negotiate |
---|---|---|---|
Packaging Details : | Export standards | Delivery Time : | 5days |
Payment Terms : | L/C, T/T | Supply Ability : | 3pcs/month |
Place of Origin: | Chang sha China | Brand Name: | SANY |
---|---|---|---|
Model Number: | SY5310THB40R 46 |
Detail Information |
|||
Color: | Red | Effluent Standard: | Euro Ⅲ |
---|---|---|---|
Power: | 302KW | Manufacturing Date: | In 2011 |
Vertical Height: | 46M | Working Pressure: | 35Mpa |
Size: | 11750*2500*3970mm | Weight: | 32800KG |
Hydraulic System: | Open System | Outlet Pressure: | 8.3/12 Mpa |
Arm Frame Type: | 46X-5RZ | Number Of Arms Rack: | 5 Section |
Driver Side: | Left | Chassis: | HINO FS1ERV |
Chassis Brand: | HINO | Engine Type: | E13C TL |
High Light: | 46M Concrete Pump Truck,HINO Chassis Concrete Pump Truck,5 Cylinders Sany Pump Truck |
Product Description
Sany heavy Industry SY5310THB40R 46 concrete conveying pump truck performance characteristics:
1: five section RZ type boom, flexible cloth, wide range;
2: X-shaped leg, which can achieve unilateral support, suitable for narrow work site construction;
3: anti-roll control technology, improve the intelligent level of pump truck, enhance the safety of work;
4: Intelligent buffer control system, less directional impact;
5: Pump displacement up to 170 m3/h, stepless adjustment, to meet the requirements of various working conditions;
6: Computer energy saving control, power automatic matching, an average energy saving of 20%;
7: the original SYMC special controller, the system operation is more reliable;
8: Concrete piston automatic return, testing, replacement is more convenient, efficient;
9: Automatic high and low voltage switching, better pumping adaptability;
10: Electrohydraulic buffer, differential pressure induction, open hydraulic system full hydraulic change, small change impact, high reliability.
