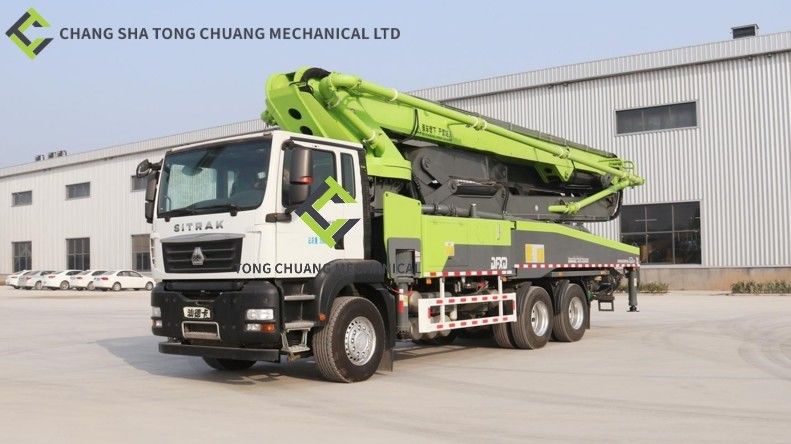

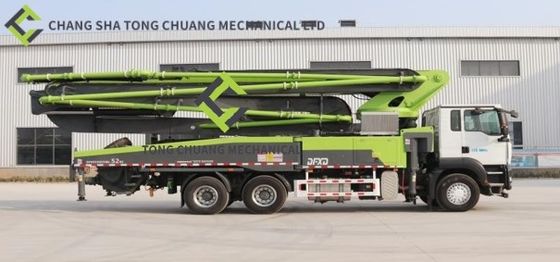

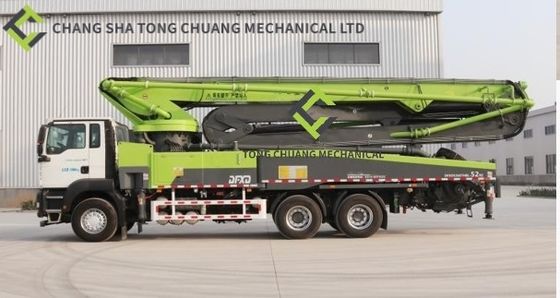

3 Bridge Concrete Pump Truck 52 Meters RZ Arm Frame Folding Mode

Minimum Order Quantity : 1pcs Price : Negotiable
Packaging Details : Standard export package Delivery Time : 5 days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 1pcs/month
Place of Origin: Changsha,Hunan,China Brand Name: DFXD
Model Number: DXD5356THBL

Detail Information

Color:: White+Green Arm Length: 52 Meters
Brand:: DFXD Manufacturing Date:: Brand New
Chassis:: Sinotruk Sitrak / Isuzu Engine Horsepower:: 400/420
Bridge Number:: 3 Size:: 12300*2500*4000
Vehicle Quality: 35000KG
High Light:

3 Bridge Concrete Pump Truck


Concrete Pump Truck 52M


RZ Arm Frame Pump Truck

Product Description

New 52 meters pump truck advantage

  • Advantage 1: tailor your best partner

      In 2016, the 50 m boom pump car, the limit number of meters, and the legal car is not overweight.

  • Advantage two: the whole vehicle design, reasonable and lean

The total length of the vehicle is 12.3 meters, and the total height is 4 meters, which can easily meet the national urban planning, high-speed rail, high-speed rail, water conservancy, etc Demand and use of construction projects.

  • Advantage three: pumping work, strong and efficient

The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 140m³ / h.

  • Advantage four: the optimal design and material

The use of modern processing and production technology, heavy investment in the research and development of lightweight boom structure, the boom through axis structure boom connection design, the table using "S" tilt technology, the pump truck leg span is smaller, the boom stability canbe higher.

  • Advantage five: safe, reliable, stable and efficient

Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.

  • Advantage six: energy conservation and emission reduction, economic reliability

The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one key start Dynamic system, easy to operate, economical and reliable.

  • Advantage seven: intelligent digital, real-time control

The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.

  • Advantage eight: professional focus, whole-hearted service

Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response, 24 hours after-sales service, efficient service, The whole worry-free.

Technical parameters of the 52-m pump truck






technical parameters


Chassis and complete vehicle parameters





Sinotruk Sitrak / Isuzu


emission standard



Six countries


Engine brand



German Man / Isuzu


Engine horsepower

Ps 400/420


Bridge number

- 3


wheel base

mm 4600+1400/4800+1370


Total length * total width * total height

mm 12300*2500*4000


Vehicle quality

kg 35000


Arm frame and support leg parameters


Maximum fabric height

mm 51100


Maximum fabric radius

mm 45200


Maximum fabric depth

mm 33900


Arm frame folding mode

- RZ


The first arm

 length mm 10600
 corner ° 89°


The second arm

 length mm 8750
 corner ° 180°


The third arm

 length mm 8450
 corner ° 180°


The fourth arm

 length mm 9530
 corner ° 235°


The fifth arm

 length mm 6900
 corner ° 180°


The sixth arm

 length mm 3500
 corner ° 90°


Turn table rotation Angle

° 359°


Open the leg

- X-H


Front leg spread width

mm 10100


Rear leg spread width

mm 10800


Pumping system


Maximum theoretical pumping capacity

m³/h 140


Maximum export pressure

Mpa 8.5


The number of theoretical pumps


Time / minute



Hydraulic system pressure

Mpa 32


The inner diameter of the conveying cylinder

mm 260


Delivery cylinder trip

mm 1800


Transmission pipe diameter

mm 125


Hydraulic oil cooling mode



air patenting


Pumping the concrete collapse degree

mm 160-220


Maximum aggregate size

mm 40


Hydraulic system type



open-type system
