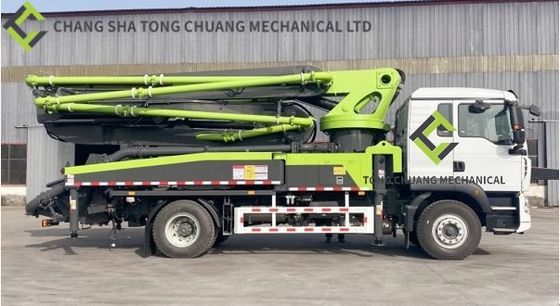

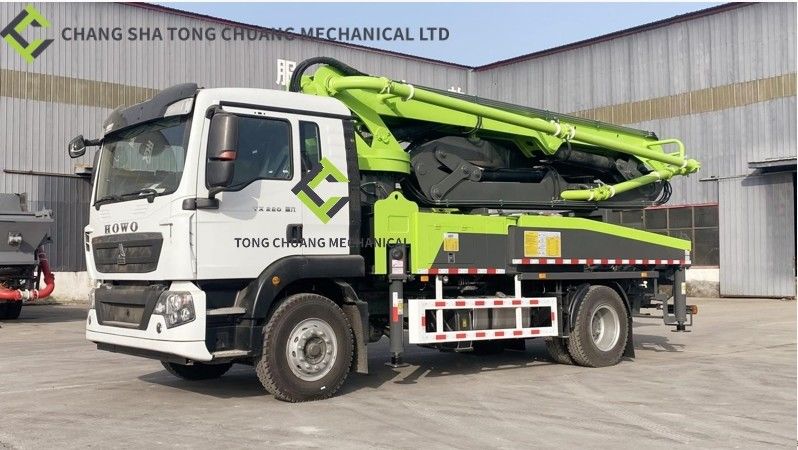

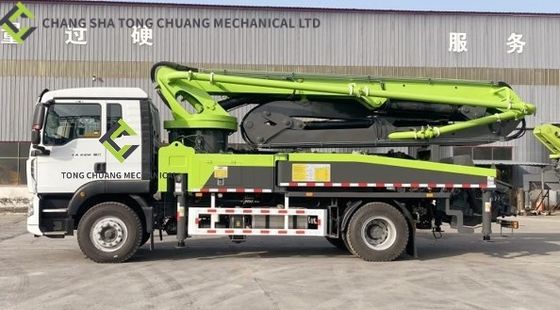

Weichai Engine Concrete Pump Truck 31 Meters With 2 Bridge

Minimum Order Quantity : 1pcs Price : Negotiable
Packaging Details : Standard export package Delivery Time : 5 days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 2pcs/month
Place of Origin: Changsha,Hunan,China Brand Name: DFXD
Model Number: DXD5180THBL

Detail Information

Color:: White Green Brand:: DFXD
Arm Length:: 31 Meters Manufacturing Date:: Brand New
High Light:

Weichai Engine Concrete Pump Truck


Concrete Pump Truck 31Meters


2Bridge Concrete Pump Truck

Product Description

New 31 meters pump truck advantage

  • Advantage 1:Rural pump truck market industry leader

Since 2009, the first single bridge pump truck in China, it has been optimized and upgraded. The 31-meter small pump truck, designed to solve the rural path, has become the most practical model in the rural pump truck market.

  • Advantage two: Vehicle design, reasonable and lean

The total length of the vehicle is 9 meters, the total height is 3.47 meters, the wheelbase is 4.5 meters, are the smallest in the same meter section of the peer, the transition is flexible, more easy to cope with the narrow and complex construction site in rural areas.

  • Advantage three: pumping work, strong and efficient

The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 100m³ / h.

  • Advantage four: Sky pump, ground pump double mode

The tail takes over the second to change the car pump, the horizontal distance between the pump pipe can reach 300 meters, one machine is multi-purpose, economical and efficient.

  • Advantage five: safe, reliable, stable and efficient

Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.

  • Advantage six: energy conservation and emission reduction, economic reliability

The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one keystart Dynamic system, easy to operate, economical and reliable.

  • Advantage seven: intelligent digital, real-time control

The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.

  • Advantage eight: professional focus, whole-hearted service

Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response,24 hours after-sales service, efficient service, The whole worry-free.

  Technical parameters of the 31-m pump truck






technical parameters


Chassis and complete vehicle parameters





Sinotruk Howo


emission standard



Six countries


Engine brand





Engine horsepower

PS 220


Bridge number

- 2


wheel base

mm 4500


Total length * total width * total height

mm 9000*2500*3470


Vehicle quality

kg 18000


Arm frame and support leg parameters


Maximum fabric height

mm 30700


Maximum fabric radius

mm 26100


Maximum fabric depth

mm 17000


Arm frame folding mode

- RZ


The first arm

 length mm 6600
 corner ° 89°


The second arm

 length mm 5150
 corner ° 180°


The third arm

 length mm 4785
 corner ° 180°


The fourth arm

 length mm 5170
 corner ° 235°


The fifth arm

 length mm 5575
 corner ° 180°


Turn table rotation Angle

° 359°


Open the leg

- X-H


Front leg spread width

mm 5800


Rear leg spread width

mm 6100


Pumping system


Maximum theoretical pumping capacity

m³/h 100


Maximum export pressure

Mpa 8.5


The number of theoretical pumps


Time / minute



Hydraulic system pressure

Mpa 32


The inner diameter of the conveying cylinder

mm 230


Delivery cylinder trip

mm 1400


Transmission pipe diameter

mm 125


Hydraulic oil cooling mode



air patenting


Pumping the concrete collapse degree

mm 160-220


Maximum aggregate size

mm 40


Hydraulic system type



open-type system
