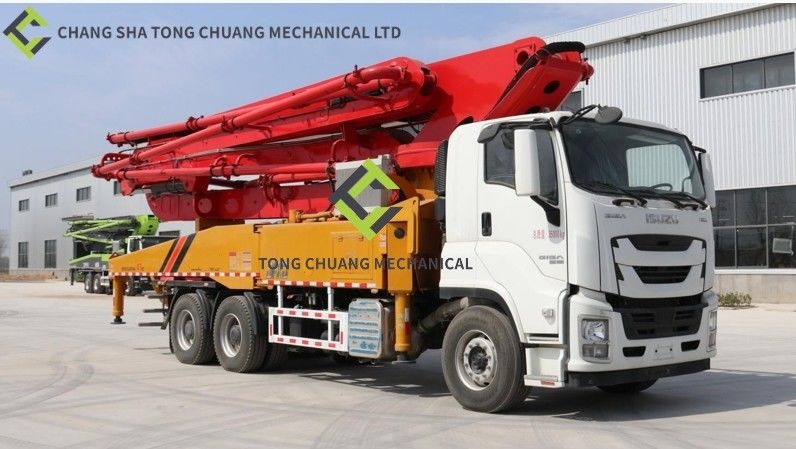

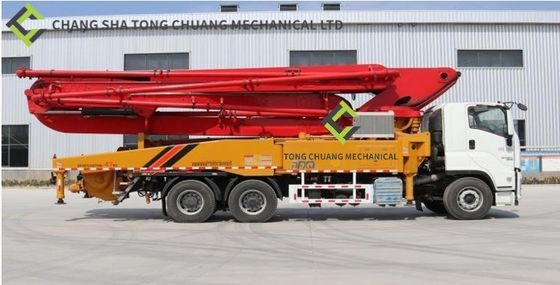

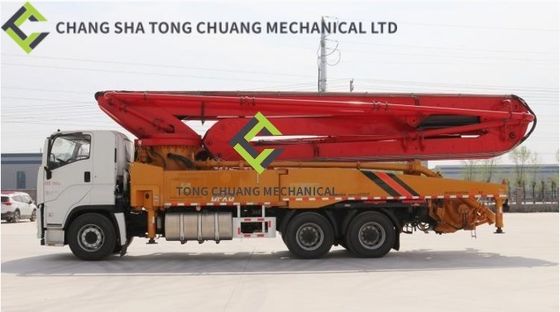

Six Countries Emission Standard 47 Meter Concrete Pump Truck With 3 Bridge

Minimum Order Quantity : 1pcs Price : Negotiable
Packaging Details : Standard export package Delivery Time : 7days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 2pcs/month
Place of Origin: Changsha,Hunan,China Brand Name: DFXD
Model Number: DXD5350THBL

Detail Information

Color:Red: Red White Brand:: DFXD
Engine Horsepower: 350/420 Size:: 11700*2500*3900
Bridge Numb:er: 3 Vehicle Quality:: 35000KG
Highlight:

47Meter Concrete Pump Truck

,

Six Countries Emission Concrete Truck

,

3Bridge Concrete Pump Truck

Product Description

New 47-Meter Concrete Pump Truck



  • Advantage 1: tailor your best partner

In 2015, the 47-meter pump truck was launched, which is suitable for the 1-9 floors of urban buildings.

  • Advantage two: the whole vehicle design, reasonable and lean

The total length of the vehicle is 11.7meters, and the total height is 3.9 meters, which can easily meet the national urban planning, high-speedrail, high-speed rail, water conservancy, etc Demand and use of construction projects.

  • Advantage three: pumping work, strong and efficient

The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 140m³ / h.

  • Advantage four: the optimal design and material

The use of modern processing and production technology, heavy investment in the research and development of lightweight boom structure, the boom through axis structure boom connection design, the table using "S" tilt technology, the pump truck leg span is smaller, the boom stability can be higher.

  • Advantage five: safe, reliable, stable and efficient

Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.

  • Advantage six: energy conservation and emission reduction, economic reliability

The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one key start Dynamic system, easy to operate, economical and reliable.

  • Advantage seven: intelligent digital, real-time control

The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.

  • Advantage eight: professional focus, whole-hearted service

Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response,24 hours after-sales service, efficient service, The whole worry-free.



  Technical parameters of the 47-m pump truck

DXD5350THBL



project

 unit



technical parameters



Chassis and complete vehicle parameters



chassis

-



Sinotruk steyr / Isuzu



emission standard

-



Six countries



Engine brand

-



Weichai / Isuzu



Engine horsepower

Ps 350/420



Bridge number

- 3



wheel base

mm 4750+1350/4800+1370



Total length * total width * total height

mm 11700*2500*3900



Vehicle quality

kg 35000



Arm frame and support leg parameters



Maximum fabric height

mm 46300



Maximum fabric radius

mm 41200



Maximum fabric depth

mm 32000



Arm frame folding mode

- RZ



The first arm

 length mm 9700
corner ° 89°



The second arm

 length mm 7850
 corner ° 180°



The third arm

 length mm 7550
 corner ° 180°



The fourth arm

 length mm 8450
 corner ° 235°



The fifth arm

 length mm 8750
 corner ° 180°



Turn table rotation Angle

° 359°



Open the leg

- X-H




Front leg spread width

mm 9500



Rear leg spread width

mm 10300



Pumping system



Maximum theoretical pumping capacity

m³/h 140



Maximum export pressure

Mpa 8.5



The number of theoretical pumps



Time / minute

25



Hydraulic system pressure

Mpa 32



The inner diameter of the conveying cylinder

mm 260



Delivery cylinder trip

mm 1800



Transmission pipe diameter

mm 125



Hydraulic oil cooling mode

-



air patenting



Pumping the concrete collapse degree

mm 160-220



Maximum aggregate size

mm 40



Hydraulic system type

-



open-type system
