In 2019 Sany Heavy Industry Used Concrete Pump Truck SYM5180THBES 30C-8

Minimum Order Quantity : 1pc Price : Negotiable
Packaging Details : Standard Export Package Delivery Time : 8days
Payment Terms : T/T、L/C、D/A、D/P Supply Ability : 3pcs/month
Place of Origin: Changsha,Hunan,China Brand Name: SANY
Model Number: SYM5180THBES 30C-8

Detail Information

Color: Red + Orange Brand: Sany
Unit Type: SYM5180THBES 30C-8 Vehicle Weight (kg): 18000
High Light:

194kw Used Concrete Pump Truck


Anti Swing Concrete Pump Truck


Sany Used Pump Truck

Product Description

In 2019 Sany Heavy Industry Used SYM5180THBES 30C-8 Concrete Pump Truck

Product features and advantages:

1. Arm frame one click fixed technology: No matter how much vibration the arm frame vibrates after movement, with just one easy button, the arm frame immediately and stably stops, and the end hose is quickly and accurately positioned.

2. Intelligent vibration reduction technology for boom: Perfect integration of German Putzmeister technology, effectively reducing boom shaking during pumping, reducing amplitude by 50%, and ensuring stable grip of the end hose.

3. Energy saving technology: fully integrated with German Putzmeister technology, with a reversing frequency of 29 times per minute (when the system pressure is 12MPa), the pumping efficiency can be increased by up to 25%, and the fuel consumption can be reduced by up to 10%.

4. Rotary anti swing control technology: adopting a new rotary braking technology, the swing amplitude of the arm frame rotation can be reduced by 60%, achieving unprecedented precision braking.

5. High wear-resistant and vulnerable parts: straight pipes, chain bends, large bends, and small bends all adopt a double-layer composite structure. The inner layer is extremely wear-resistant, with a service life of up to 40000 to 60000 cubic meters. Concrete piston: rubber alkali piston, extremely pressure resistant, heat resistant, and wear-resistant, suitable for various harsh working conditions, with a service life of up to 20000 to 30000 cubic meters. Glasses plate/cutting ring: double-layer composite structure, with special steel inner sleeve, with wear resistance 15 times that of ordinary steel, and a service life of up to 60000 to 80000 cubic meters. Conveyor cylinder: inner layer chrome plated, with a hardness of over HV900, and a service life of up to 100000 to 140000 cubic meters.



Pump tuck parameters

Unit type

SYM5180THBES 30C-8

Engine model


Vehicle Weight (kg)






Kilometers driven


Engine Power​(kW)


Engine displacement (cc)


Quantity of concrete delivered

35000cubic meters

maximum speed


Vertical Reach

30.1 meters

Horizontal Reach


Pump system parameter information
Low pressure theoretical displacement of concrete(m³/h) 108 Theoretical pumping pressure low pressure 6.6Mpa
Water tank volume (L) 300 Concrete cylinder cylinder diameter stroke (mm) 230×1600
Hydraulic system open type Fuel tank volume (L) 320
Arm frame, support leg parameters
Vertical depth of boom 15.2m Minimum unfolding height 9.6m
Length of the first arm 7676mm Angle of the first arm 89 °
Second arm length 6090mm Second arm angle 180 °
Third arm length 6100mm Third arm angle 245°
Fourth arm length 6635mm Fourth arm angle 230 °


The pictures as follows:

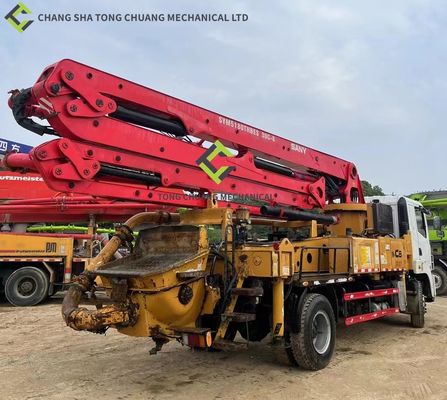

In 2019 Sany Heavy Industry Used Concrete Pump Truck SYM5180THBES 30C-8 0

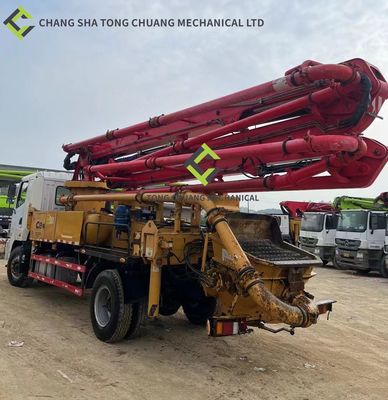

In 2019 Sany Heavy Industry Used Concrete Pump Truck SYM5180THBES 30C-8 1

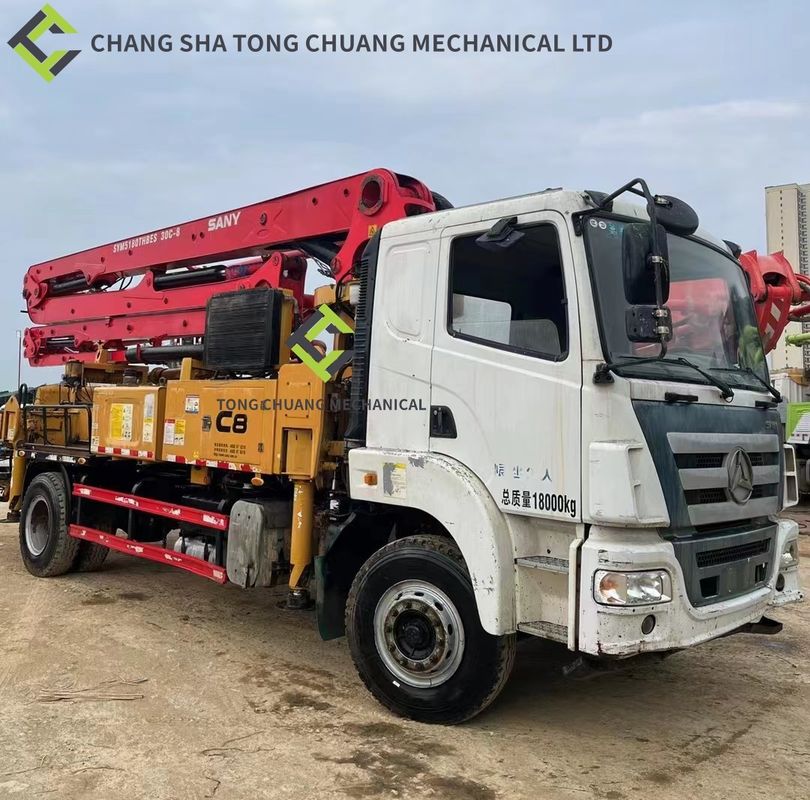

In 2019 Sany Heavy Industry Used Concrete Pump Truck SYM5180THBES 30C-8 2

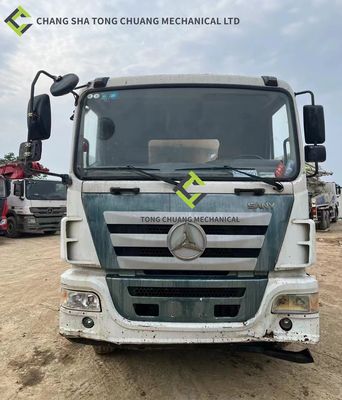

In 2019 Sany Heavy Industry Used Concrete Pump Truck SYM5180THBES 30C-8 3
