Zoomlion Concrete Pump Truck Accessories Control Circuit Board Bjk-6_ Xs

Place of Origin:	Changsha，Hunan，China	Brand Name:	Changsha Concrete Innovation Machinery
Model Number:	BJK-6_XS/1029905542

Detail Information
Brand:	Changsha Concrete Innovation Machinery	Weight:	0.2kg
Material:	Printed Circuit Board
High Light:	Concrete Pump Control Circuit Board , Zoomlion Pump Control Circuit Board

Product Description

*^{Detailed parameters of circuit board}*
Name	Relay control circuit board/BJK-6_ XS
Brand	Changsha Concrete Innovation Machinery
Applicable models	Suitable for Zoomlion Concrete Pump Truck
Model	BJK-6_XS/1029905542
Weight	0.2kg
Material	Printed circuit board
After-sales service	Free online support and video support from professional service engineers for more than 10 years! Accessories support!
Product functional characteristics	BJK-6 circuit board, suitable for pump truck identification in 2009-11. In the figure, the fuse is the main power supply fuse of the switching circuit. If the fuse is burned out, the operation status cannot be switched. There is no indicator light on the switching panel. The relay group is fixed to the circuit board, and if it is determined to be damaged, it can be replaced directly. In emergency situations, the control line can be short-circuited through leads, such as when KA9 fails, the leads of Line 82A and Line 79 can be short-circuited and switched to a running state.

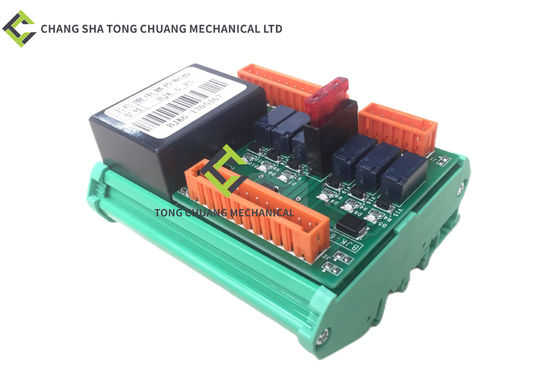

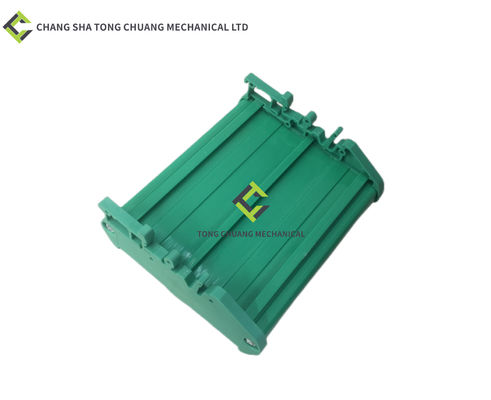

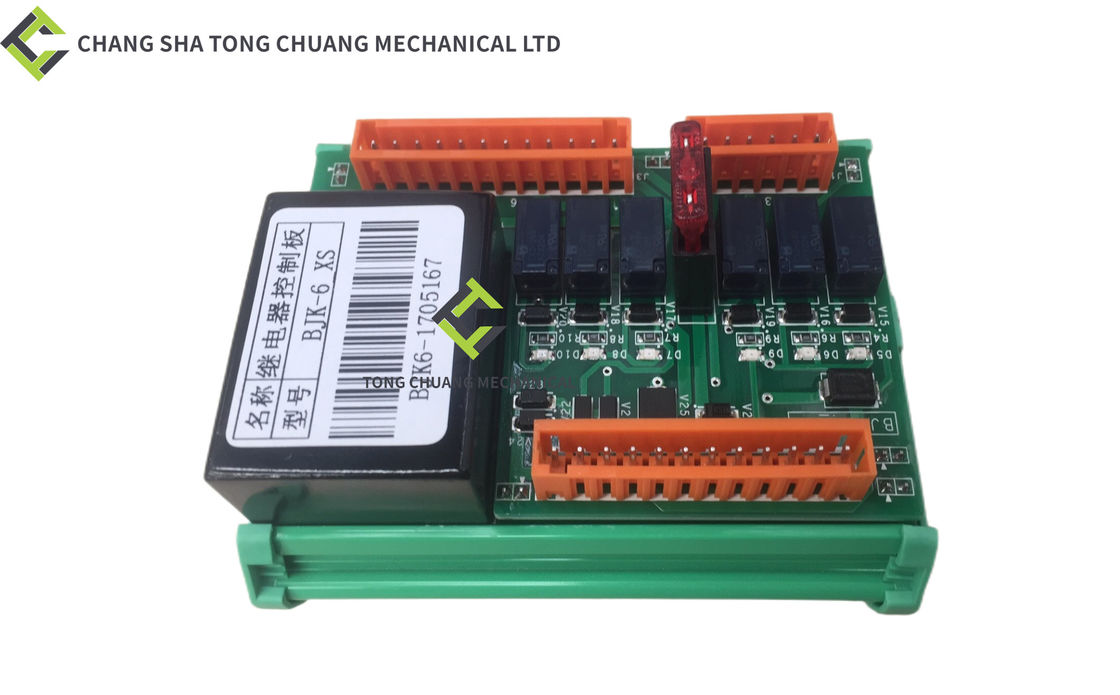

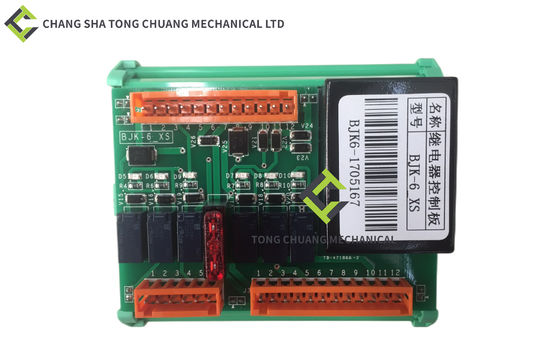

The picture as follows:

Zoomlion Concrete Pump Truck Accessories Control Circuit Board Bjk-6_ Xs 0

Zoomlion Concrete Pump Truck Accessories Control Circuit Board Bjk-6_ Xs 1

Zoomlion Concrete Pump Truck Accessories Control Circuit Board Bjk-6_ Xs 2
