Used Truck Mounted Line Pumps

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Standard Export Package Delivery Time : 7 days
Payment Terms : T/T、L/C、D/A、D/P Supply Ability : 4pcs/month
Place of Origin: Changsha,Hunan,China Brand Name: Zoomlion
Model Number: ZLJ5140THBJE-10018R

Detail Information

High Light:

Used Truck Mounted Line Pumps

,

ZLJ5140THBJE Line Pumps

,

300l Used Truck Mounted Line Pumps

Product Description



zoomlion used truck mounted line pumps parameter configuration
Conventional parameters:
unit type

ZLJ5140THBJE-10018R

Model abbreviation 5140
Vehicle parameters:
Vehicle Weight (kg) 13800 Overall dimension (length, width and height) (mm) 9100X2450X3140
dynamical system:
power rating (kW) 186 engine type BF6M1013-25T3R/1
Pump system parameters:
Max Output Quantity(Low / High Pressure) (m³ / h) 100/55 Max Output Pressure(Low / High Pressure)(Mpa) 10/18
Theoretical pumping times (low / high pressure) (times / min) 25/14 Concrete cylinder cylinder diameter stroke (mm) 200x1650
bucket capacity (m³) 0.6 Feed height (mm) 1500
Chassis parameters:
Chassis brand FAW liberation Chassis model CA1167PK2L2BESA80
engine type CA4DLD-18E6 Engine power (kW) 139
engine displacement (L) 4.76 Maximum speed (km/h) 89
wheel base (mm) 4950 Fuel tank volume (L) 300

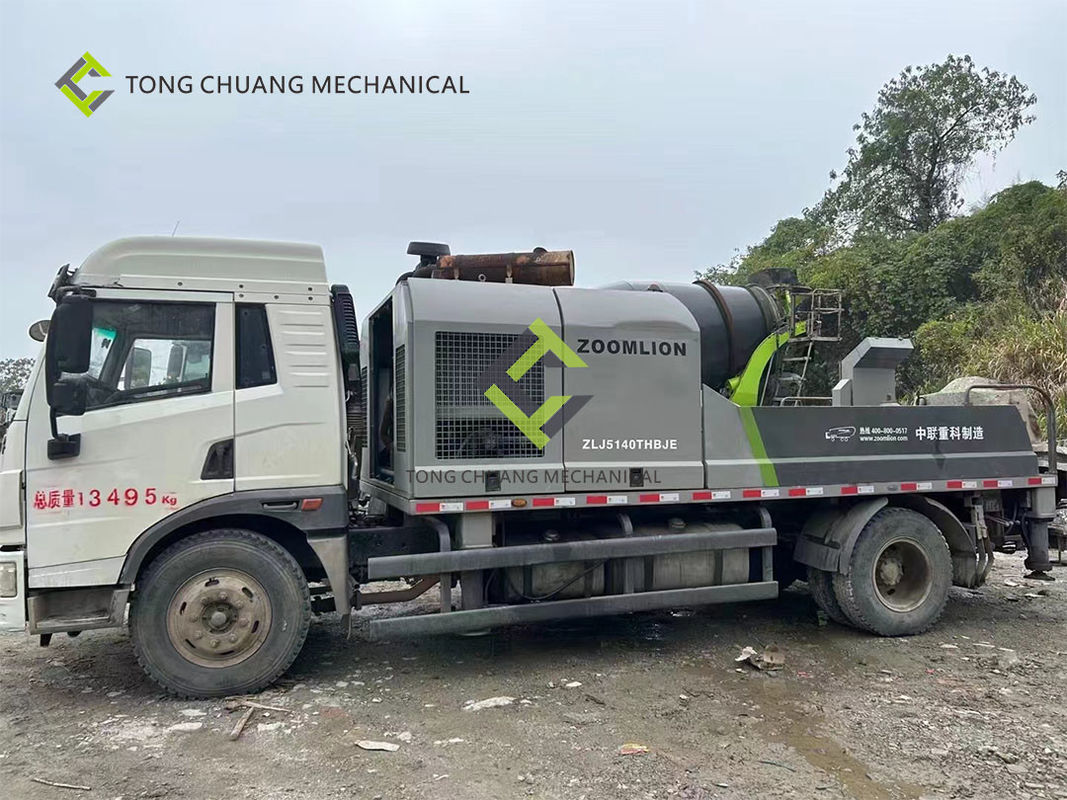

Used Truck Mounted Line Pumps 0

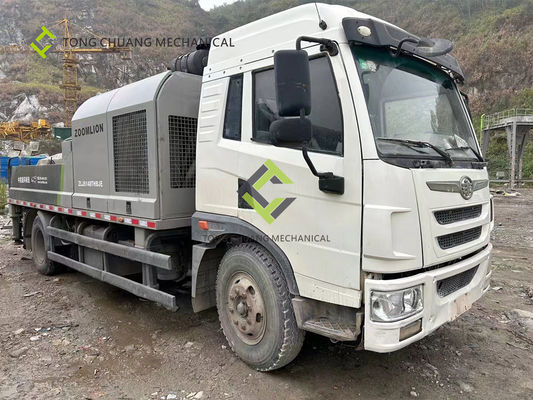

Used Truck Mounted Line Pumps 1

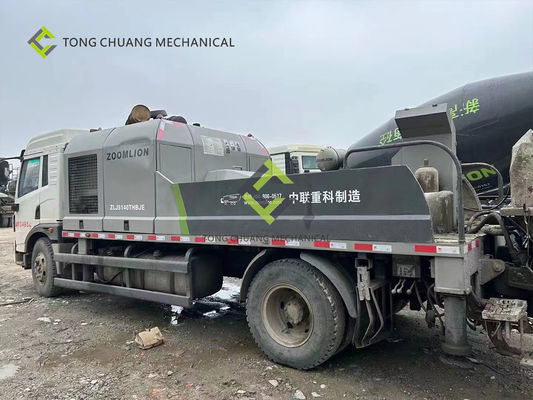

Used Truck Mounted Line Pumps 2

Used Truck Mounted Line Pumps 3

Used Truck Mounted Line Pumps 4

Product features and advantages:

1:Dongfeng Tianjin chassis is equipped with Dongfeng Cummins engine, which is mature, reliable and powerful. The cab is flat with a sleeper. The interior is luxurious and equipped with air conditioning, which has a very comfortable driving feeling; Excellent performance, economy and durability. The cab is equipped with panoramic curved glass windscreen, multi-function seats, luxurious interior and air conditioning. The humanized design also makes driving very comfortable.Product features and advantages: Dongfeng Tianjin chassis is equipped with Dongfeng Cummins engine, which is mature, reliable and powerful. The cab is flat with a sleeper. The interior is luxurious and equipped with air conditioning, and has a very comfortable driving feeling; Excellent performance, economy and durability. The cab is equipped with pano+J246ramic curved glass windscreen, multi-function seats, luxurious interior, and air conditioning. The humanized design also makes driving very comfortable.

2:Adaptive power change technology (APD) is the best match. The lowest fuel consumption in the industry is automatic matching power mode according to pumping conditions. The engine always works in the economic fuel consumption area, saving 15% fuel compared with other manufacturers.

3:The industry's first digital electronic control system for line pumps.

4:The whole vehicle realizes digital management, intelligently adjusts the pumping stroke according to the load change during pumping, greatly improving the pumping suction and pumping efficiency; The pump reversing displacement is automatically adjusted to reduce pumping impact, reduce vehicle jitter and extend the using life of structural parts.
