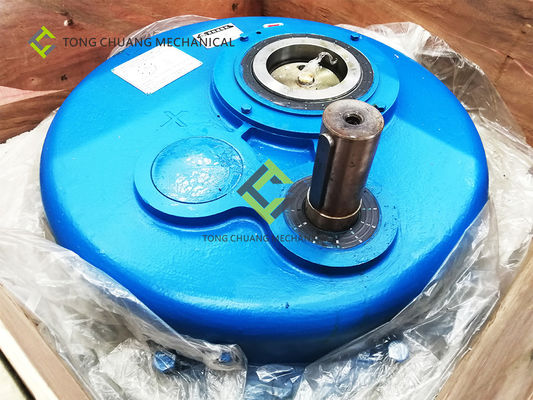

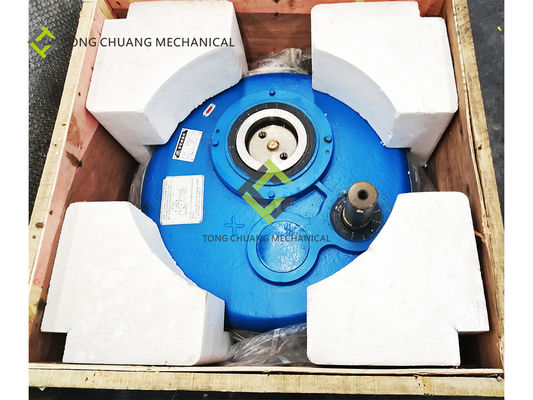

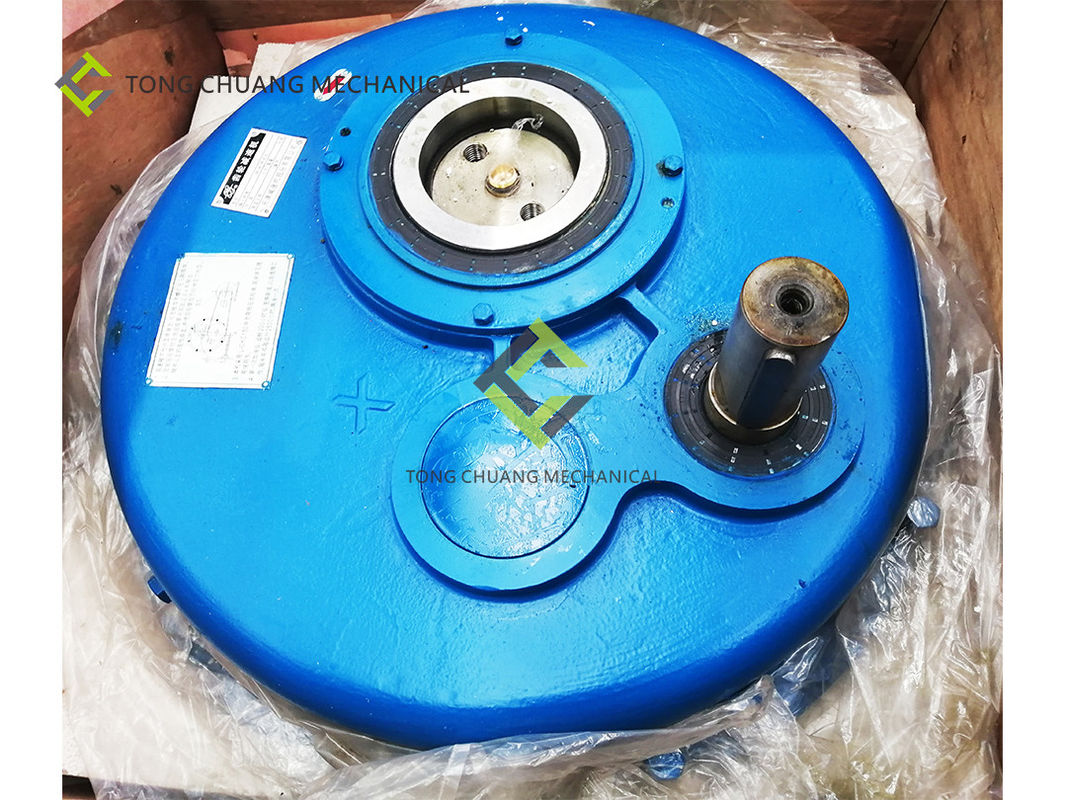

Inclined Belt Suspension Reducer Gear Assembly Of Concrete Batching Plant Parts

Minimum Order Quantity : 1pcs Price : Negotiatable
Packaging Details : Export standard packing Delivery Time : 7 work days
Payment Terms : D/P, T/T Supply Ability : 20 Pieces/month
Place of Origin: Tianjin, China Brand Name: Tianjin Bai Li Tian xing speed reducer
Model Number: ZGY625/ZGY710

Detail Information

Name: Inclined Belt Suspension Gear Reducer Assembly Applicable Model: Zoomlion HZS120/HZS180 Concrete Mixing Station
Specifications And Models: ZGY625/ZGY710 Weight: 290KG
Rotational Speed: 1400 Rpm Drive Ratio: 1:12.3
Power: 113KW Function: Drive Device Of Inclined Belt Conveyor In Zhonglian Mixing Station.
High Light:

Gear Inclined belt reducer

,

Concrete Batching Plant gear reducer

,

Suspension gear reducer

Product Description

Inclined belt suspension gear reducer assembly of concrete batching plant parts





Inclined belt suspension gear reducer assembly of concrete batching plant parts
Name Inclined belt suspension gear reducer assembly
Place of origin Tianjin, China
Brand name Tianjin Bai Li Tian xing speed reducer
Applicable model Zoomlion HZS120/HZS180 concrete mixing station
Specifications and models ZGY625/ZGY710
Weight 290KG
Rotational speed 1400 rpm
Drive ratio 1:12.3
Power 113KW
Function Drive device of inclined belt conveyor in Zhonglian mixing station.
Supply capacity 20 Pieces/month
Packing Export standard packing
Minimum order 1pcs
Price Negotiatable




Product features and advantages:

ZGY suspension gear reducer is a kind of hard gear reducer, and the gear is made of high-strength low-carbon alloy steel. The gear has the characteristics of high precision, high hardness, small size, large vehicle capacity, high efficiency, simple structure, easy installation and maintenance of ZGY710.100, and can be equipped with anti-reverse device. The input shaft of the reducer is connected with the motor by belt pulley, and the output is connected by single key of hollow shaft, which can replace electric drum as the power source of belt conveyor and hoist.





Maintenance method:

L-CKC150 intermediate gear oil is recommended for lubrication of reducer. When using the backstop, lubricating additives such as molybdenum disulfide should not be used in the reducer. After refueling, replace the new oil after running for 200 hours. Work continuously in the future, and change the oil every six months or every 2,500 hours.





Inclined Belt Suspension Reducer Gear Assembly Of Concrete Batching Plant Parts 0
