D105 Sany Concrete Pump Parts Small End Bearing Block Assembly
Contact Person : JiLiu
Phone Number : 0086-18975137227
WhatsApp : +8618975137227
| Minimum Order Quantity : | 1 | Price : | $460-495 |
|---|---|---|---|
| Packaging Details : | Export standard packing 300*100*150mm | Delivery Time : | 7 work days |
| Payment Terms : | D/P, T/T | Supply Ability : | 100 Pieces/month |
| Place of Origin: | Germany | Brand Name: | Germany HAWE |
|---|---|---|---|
| Model Number: | -32 O 63/63/EA2 |
|
Detail Information |
|||
| Name: | Multi-unit Valve Block | Product Name: | Multi-way Valve |
|---|---|---|---|
| Applicable Model: | Putzmeister, Foton, Zoomlion, Sany, Schwing Concrete Pump Truck | Specifications And Models: | -32 O 63/63/EA2 |
| Specification Size: | 300*100*150mm | Applicable Medium: | Hydraulic Oil |
| Applicable Temperature: | -20~+120 (℃) | Nominal Pressure: | 42MPa |
| Flow: | Qmax 80（120）L/min | Working Pressure: | Pmax 420bar |
| High Light: | 42MPa concrete pump accessories,concrete pump accessories Valve Block,HAWE Concrete Pump multi block valve |
||
Product Description

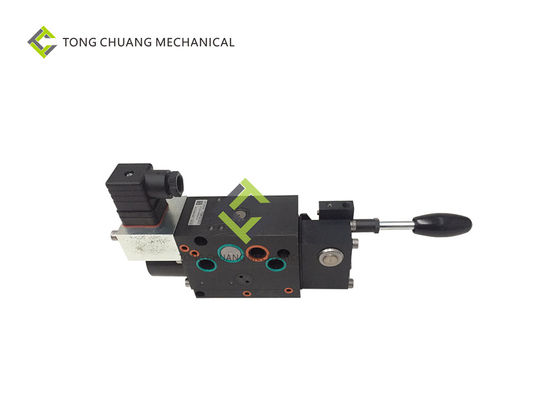

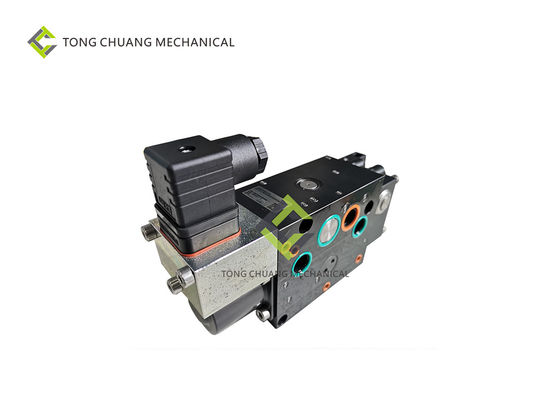

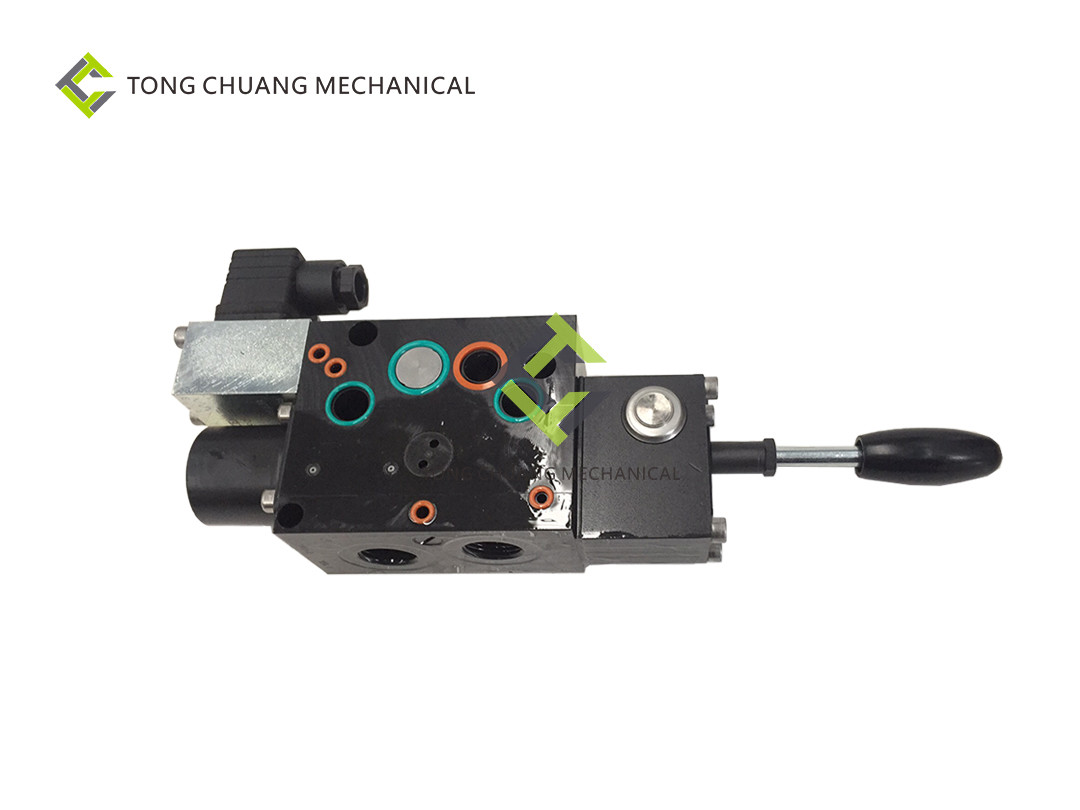

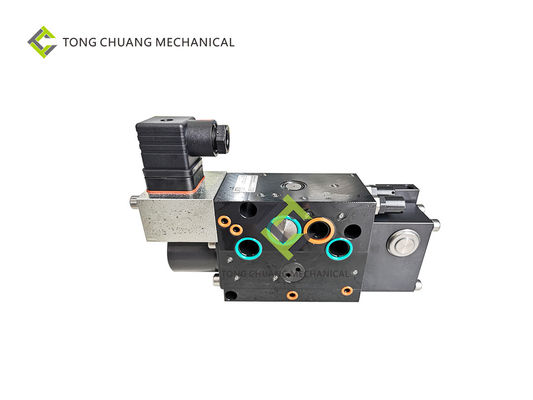

Sany Concrete pump parts HAWE Multi-unit valve block -32O63/63/EA2
| Sany Concrete pump parts HAWE Multi-unit valve block -32O63/63/EA2 | |
| Name | Multi-unit valve block |
| Product name | Multi-way valve |
| Place of origin | Germany |
| Brand name | Germany HAWE |
| Applicable model | Putzmeister, Foton, Zoomlion, Sany, Schwing concrete pump truck |
| Specifications and models | -32 O 63/63/EA2 |
| Specification size | 300*100*150mm |
| Weight | 4KG |
| Applicable medium | Hydraulic oil |
| Applicable temperature | -20~+120 (℃) |
| Nominal pressure | 42MPa |
| Quality assurance | 3 months |
| Flow | Qmax 80(120)L/min |
| Working pressure | Pmax 420bar |
| Supply capacity | 100 Pieces/month |
| Packing | Export standard packing 300*100*150mm |
| Minimum order | 1 |
| Price | $460-495 |
Product features and advantages:
1,Excellent sealing performance
2,High control precision and sensitive action.
3,Widely used, favored by Sany Heavy Industry, Zoomlion, Xugong Group, Putzmeister, South Korea JUNJI and other host manufacturers.
Maintenance method:
1,The hydraulic oil must be kept clean, otherwise the control spool of the multi-way valve will be stuck, which will lead to misoperation of the boom or rotating parts.
2,Ensure that the temperature of hydraulic oil is below 80℃, otherwise the sealing ring of multi-way valve will be damaged, resulting in oil leakage and failure of various control functions.
