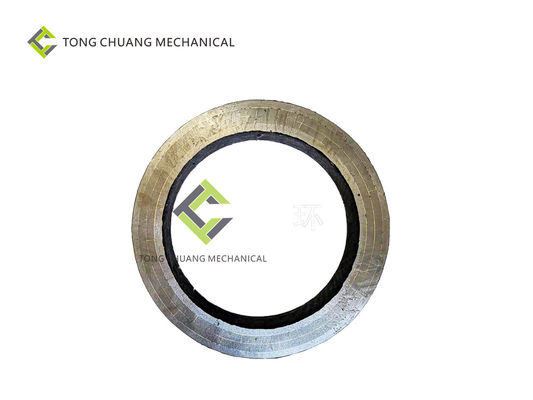

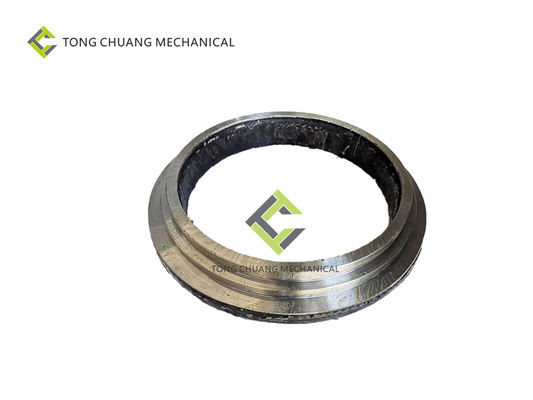

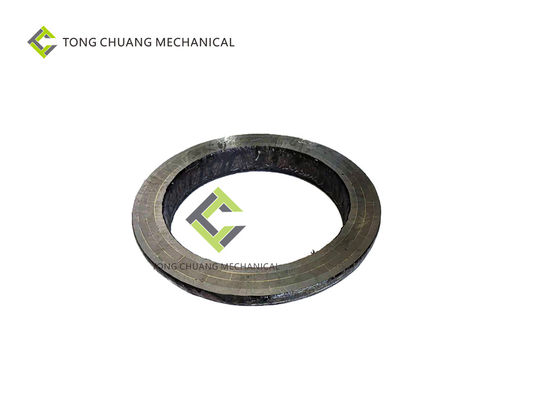

Wear Resistant Concrete Pump Parts Cutting Ring DN200/DN230/DN260

Minimum Order Quantity : 1 Price : $140-180
Packaging Details : Export standard packing 320*320*50mm Delivery Time : 7 work days
Payment Terms : D/P, T/T Supply Ability : 1000 Pieces/month
Place of Origin: Changsha, Hunan, China Brand Name: Changsha Tongchuang Mechanical
Model Number: DN200/DN230/DN260

Detail Information

Name: Cutting Ring Applicable Model: Applicable To All Models Of Sany Concrete Pump/pump Truck /truck-mounted Pump
Specifications And Models: DN200/DN230/DN260 Weight: 11KG
Useful Life(m³): 15000 Specification Size: 320*320*50mm
Hardness Of Surfacing Layer(HRC): ≥65 Material: Super Wear-resistant Materials
High Light:

DN200 Concrete pump parts ring

,

Concrete pump parts cutting ring

,

DN230 Concrete Pump cutting ring

Product Description

Sany Concrete pump parts cutting ring DN200/DN230/DN260





Sany Concrete pump parts cutting ring DN200/DN230/DN260
Name Cutting ring
Place of origin Changsha, Hunan, China
Brand name Changsha Tongchuang Mechanical
Applicable model Applicable to all models of Sany concrete pump/pump truck /truck-mounted pump
Specifications and models DN200/DN230/DN260
Specification size 320*320*50mm
Weight 11KG
Hardness of surfacing layer(HRC) ≥65
Useful life(m³) 15000
Material Super wear-resistant materials
Supply capacity 1000 Pieces/month
Packing Export standard packing 320*320*50mm
Minimum order 1
Price $140-180



Product features and advantages:

1,High wear resistance, stable quality, high wear resistance and average service life ≥ 15,000m³.
2,Adopting double alloy structure, the alloy's brazing fullness reaches 100%, which effectively reduces welding stress and completely eliminates alloy chipping.
3,The Original factory design ensures the installation quality and pumping seal, which is conducive to prolonging the service life of hopper, transition sleeve, S pipe and other related parts.





Maintenance method:

1,Regularly check the gap between the spectacle plate and the cutting ring. Once the gap increases, immediately tighten the special nut or replace the worn parts to prevent mortar from entering the friction surface.
2,Rotate the cutting ring regularly to make it wear evenly. Generally, it takes about 100 hours to rotate the cutting ring by 90︒
3,After the pump is finished, the contact surface between the spectacle plate and the cutting ring should be washed with water to prevent fine sand from adhering to the gap between the spectacle plate and the cutting ring.





Wear Resistant Concrete Pump Parts Cutting Ring DN200/DN230/DN260 0
