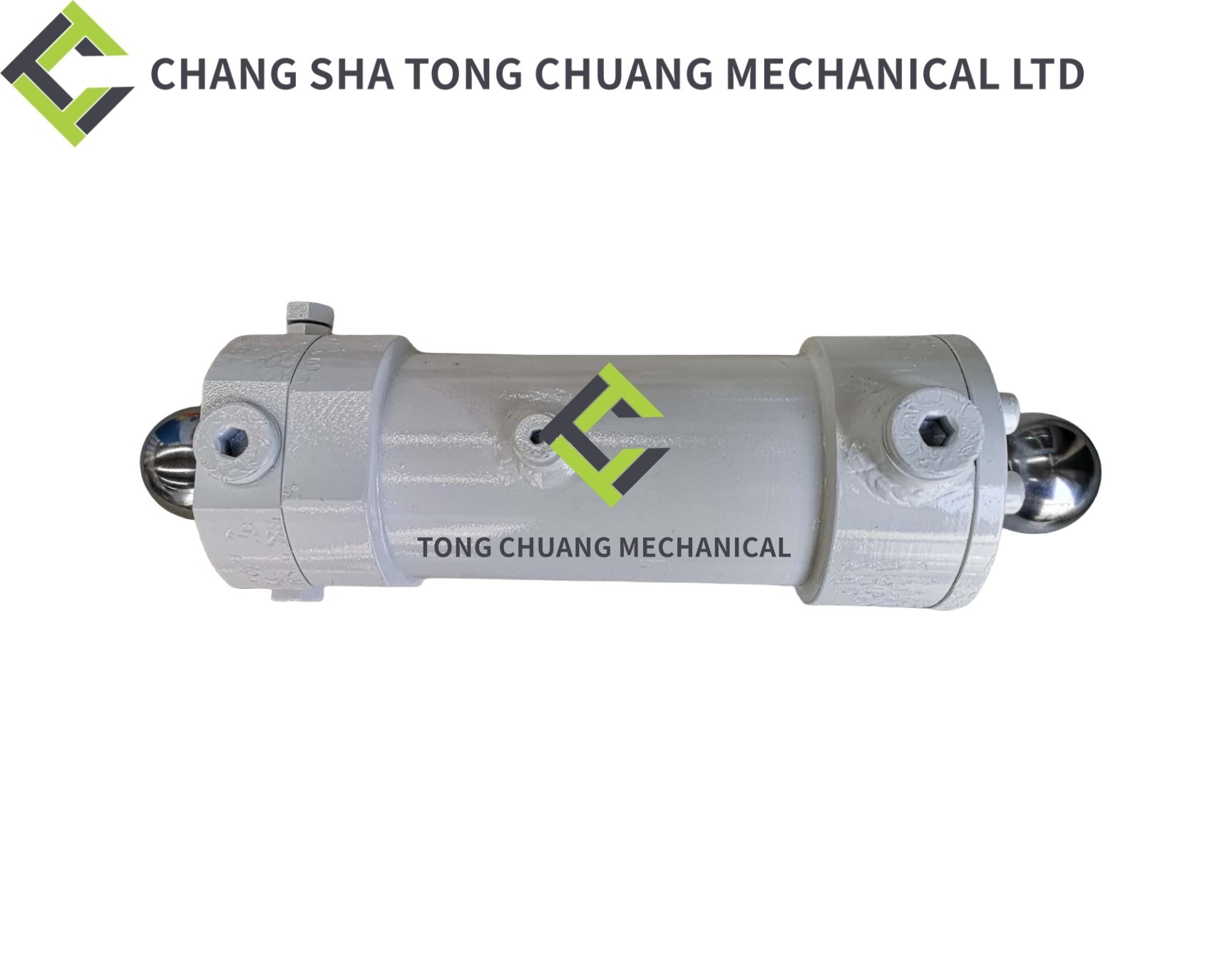

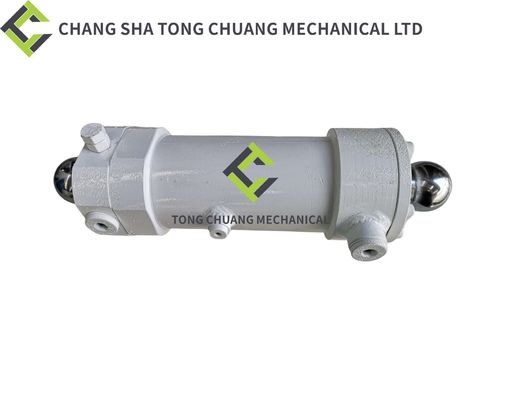

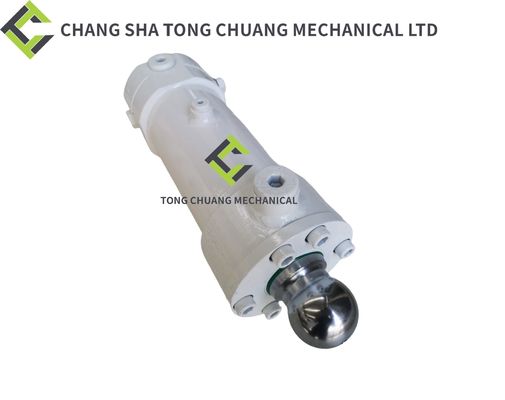

Zoomlion Concrete Pump Swinging Cylinder Assembly (Left) F9000 (Front Driver'S Seat) 000190201A0200000

Product Description

Zoomlion Concrete Pump Swinging Cylinder Assembly (Left) F9000 (Front Driver'S Seat) 000190201A0200000

The swing oil cylinder assembly for Zoomlion concrete pump, specifically the right swing cylinder with the spare part code 000190201A0300000 and the left swing cylinder with the spare part code 000190201A0200000, serves a crucial function in controlling the swinging motion of the S-tube.

The primary role of the swing oil cylinder assembly is to move the S-tube back and forth, allowing for the redirection of concrete flow in the concrete pump. The S-tube is a critical component that controls the path of the concrete from the input hopper to the output pipe. By actuating the swing oil cylinders, the S-tube can be swung from side to side, altering the direction of the concrete flow.

The swing oil cylinder assembly consists of hydraulic cylinders, pistons, seals, and other necessary components. When hydraulic pressure is applied to the cylinders, the pistons move, causing the swing motion of the S-tube. The right and left swing cylinders work in coordination to achieve the desired swinging action, allowing for precise control over the concrete flow direction.

Additionally, the swing oil cylinder assembly contributes to the versatility and functionality of the concrete pump. By adjusting the swinging motion of the S-tube, operators can easily navigate around obstacles or reach specific areas during concrete placement. This flexibility enables efficient and accurate pouring of concrete in various construction scenarios.

Furthermore, the swing oil cylinder assembly ensures the reliability and durability of the Zoomlion concrete pump. The cylinders and associated components are engineered to withstand the high pressures and forces encountered during operation. They are designed to provide smooth and consistent swinging motion, minimizing wear and tear and reducing the need for frequent maintenance or replacements.
