Rubber Polyurethane Zoomlion Concrete Pump Parts S Valve Seal Kit Big End
Contact Person : JiLiu
Phone Number : 0086-18975137227
WhatsApp : +8618975137227
| Minimum Order Quantity : | 1piece | Price : | $60-78/piece |
|---|---|---|---|
| Packaging Details : | According to export standards | Delivery Time : | 1 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 100pcs/month |
| Place of Origin: | Changsha, Hunan, China | Brand Name: | Changsha Tongchuang Mechanical |
|---|---|---|---|
| Model Number: | 001690202A0000001/Bearing pedestal |
|
Detail Information |
|||
| Material Quality: | Steel | Quality Assurance: | In 1 Year |
|---|---|---|---|
| Weight: | 34kg | Adaptation Manufacturer: | Zoomlion |
| Installation Site: | Hopper | Packaging:: | Standard Export Carton |
| Brand:: | OEM Or ODM | ||
| High Light: | Concrete Pump Bearing Pedestal,Zoomlion Concrete Pump Bearing Pedestal |
||
Product Description

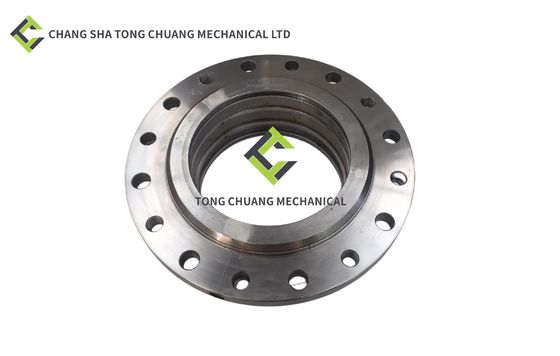

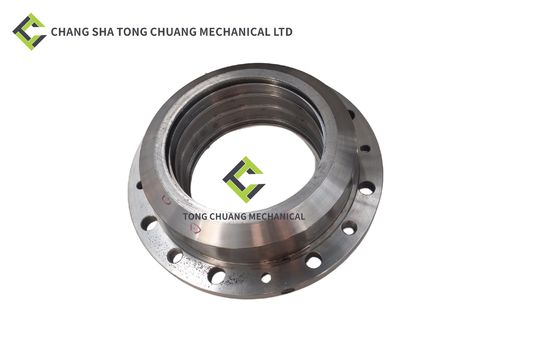

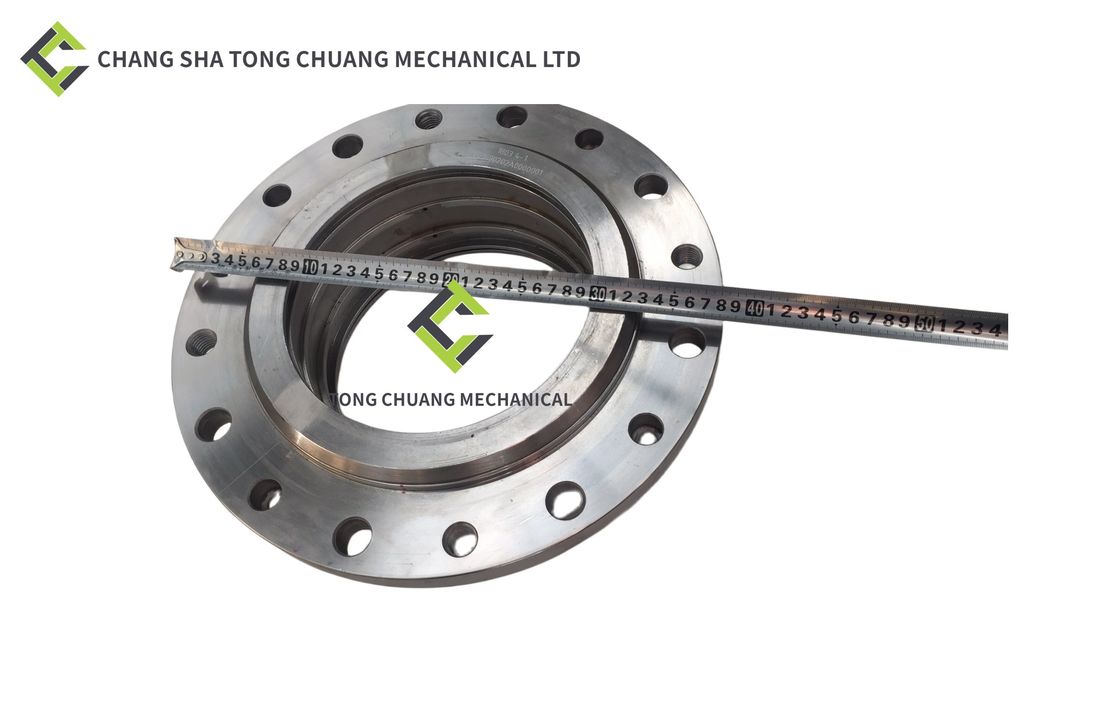

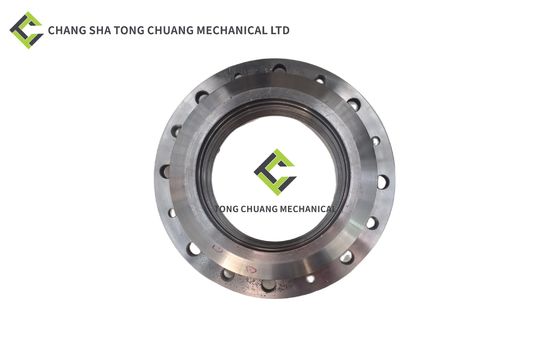

Zoomlion Truck-Mounted Concrete Pump/Dis. V Assy.001690213a0000000/Bearing Pedestal
Specification:

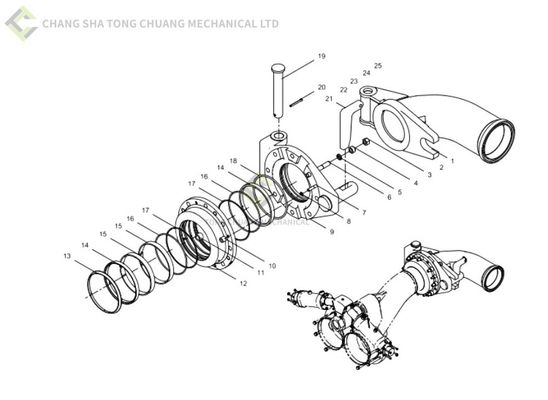

| Dis. V. assy. 001690213A0000000 1/4 | |||||
| POS. | CODE | STANDARD NO. | DESCRIPTION | SPEC | QTY |
| 1 | 001690213A0200000 | Outlet bend | 1 | ||
| 2 | 1109900513 | Spring buckle | 2 | ||
| 3 | 000190201A0000019 | 0160402F0030 | Screw cover | 8 | |
| 4 | 1040200097 | GB/T6170-2000 | Nut | M20-8 | 8 |
| 5 | 1040300038 | GB/T93-1987 | Washer | 20 | 8 |
| 6 | 1040000505 | GB/T899-1988 | Double-screw bolt | AYM20-M20×120-8.8 | 8 |
| 7 | 1040100259 | GB/T70.1-2000 | Screw | M12×55-8.8 | 4 |
| 8 | 1040300054 | GB/T93-1987 | Washer | 12 | 7 |
| 9 | 001690202A0100000 | 0167802A1000 | Outlet | 1 | |
| 10 | 001690201A0000012 | 0167502A0019 | Gasket set 2 | 4 | |
| 11 | 001690201A0000001 | 0167502A0002 | Gasket set | 8 | |
| 12 | 001690202A0000001 | 0167802A0001 | Bearing pedestal | 1 | |
| 13 | 000190201A0000007 | 0010202A0001 | J-type dust ring | d210 | 1 |
| 14 | 000190201A0000008 | 0010202A0002 | Yx-Seal ring | d210 | 2 |
| 15 | 000190201A0000009 | 0010202A0003 | Beairng | TMC nylon | 2 |
| 16 | 1081000456 | GB/T3452.1-1992 | O-ring | 212×5.3 | 2 |
| 17 | 000190201A0000010 | 0010202A0004 | Retalner ring | 219.3×210×2 | 2 |
| 18 | 001690207A0000001 | O-ring | 2247 | 1 | |
| 19 | 001690201A0000010 | 0167502A0015 | Pin | 1 | |
| 20 | 1040500217 | GB/T91-2000 | Pin | 8×63 | 1 |
| 21 | 001690201A0000011 | 0167502A0016 | Inclined block | 1 | |
| 22 | 001690201A0000013 | Chain | 5.0×18.8×28.2-300 | 1 | |
| 23 | 001605103A0700004 | 0161583C0006 | Pin | 1 | |
| 24 | 1999900000 | Key ring | 1 | ||
| 25 | 001605103A0703000 | 0160183C0015 | Wire rope sleeve | 1 | |
Description:
Zoomlion utilizes bearing pedestals for the hopper position of their concrete pumps, which come in three different models with corresponding part codes: 000190201A0000018, 001690202A0000001, and 000190205A0000002.
