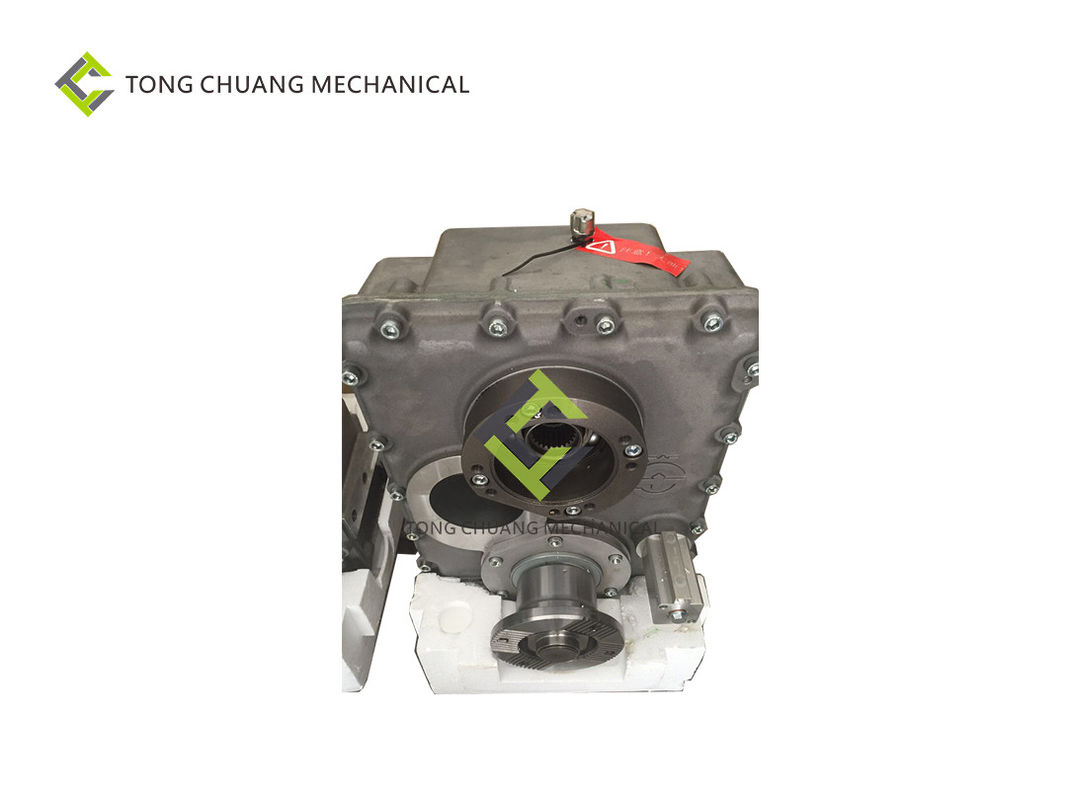

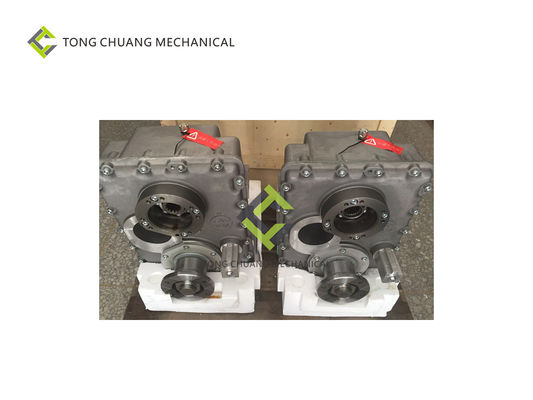

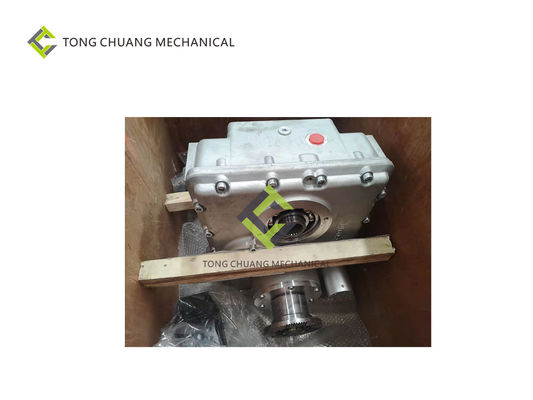

Sany Concrete pump parts transfer case assembly

1 12030379 Three-axis end cap
2 A210609000319 O-ring
3 12245377 combination box
4 60113779  O-ring
5 A820202004779 retaining ring
6 B230101001726 Oil seal
7 A210609000320 O-ring
8 A820201000678 Transparent cover
9 A820203001630 Connector plate
10 A820204000477 Nut
11 A210507000021 Sales
12 A820299000907 Spacer
13 A210204000225 Screw
15 11081590 pressure ring
16 11081592 Connector plate
17 A210204000134 Screw
18 A210405000006 Washer
19 A210401000016 Washer
20 A820601991077 Insulation mat
21 A820405000022 Small guide sleeve
22 A210609000195 O-ring
23 A210609000185 O-ring
24 A820405000024 Guide sleeve
25 A210609000353 O-ring
26 A210609000002 O-ring
27 10449367 Piston body
28 A210405000011 Washer
29 A210334000003 Nut
30 A820405000020 Cylinder block
31 A210204000352 Screw
32 A210204000025 Screw
33 A210405000001 Washer
34 A820201000679 Two-axis end cover
35 A210609000351 O-ring
36 A210111000037 Bolt
37 A210344000001 plug
38 A230101000046 Washer
66 11081595 Cover
67 A210204000259 Screw
68 A210401000013 Washer
69 A210307000001 Nut
70 A210401000002 Washer
14 A210507000009 Sales
40 B221500000055 Bearing
41 A820210000330 spline sleeve
42 A210416000039 Stop ring
43 A820301022121 Three axis
44 A829900000879 Key
45 A210419000014 Stop ring
46 A820210000223 Gear
47 B221500000196 Bearing
48 A210414000102 Stop ring
49 A820302020039 Two axes
50 A820210000222 Gear A (3)
51 A820404000090 Fork
52 B221500000200 Bearing
53 B221500000236 Rolling bearing
54 A820301020616 output shaft
55 B221500000199 Bearing
56 A820210000172 Gear (1)
57 A820210000221 Gear A (2)
58 B221500000197 Bearing
59 A210416000035 Stop ring
60 A820299000909 Stop ring
61 A820301020617 Input shaft
62 A820202003672 Sleeve
63 11081591 fork lever
64 A820202003028 Positioning sleeve
1 A210204000025 Screw
2 A820405000025 Box cover
3 A820405000026 Box
4 A210405000001 Washer
5 21051708 Sales

Product features and advantages:

1,Balance valve is a kind of valve with special function, which has good flow characteristics.1,China's independent production, superior and reliable performance.
2,Convenient installation, fine manufacturing process, precise production process, efficient and stable operation.

Maintenance method:

1,Change the gear oil of the transfer case regularly. It is recommended that the brand name of the oil be Mobil SHC220 synthetic gear oil.
2,Insufficient gear oil or improper use will cause accelerated wear and damage of gears, bearings and copper shift forks in the transfer case.
