| Minimum Order Quantity : | 1 | Price : | $295 |
|---|---|---|---|
| Packaging Details : | Export standard packing 700*450*40mm/pcs | Delivery Time : | 7 work days |
| Payment Terms : | D/P, T/T | Supply Ability : | 3000 Pieces/month |
| Place of Origin: | Changsha, Hunan, China | Brand Name: | SANY |
|---|---|---|---|
| Model Number: | DN200/DN230/DN260 |
|
Detail Information |
|||
| Name: | Concrete Pump Glasses Plate | Applicable Model: | Applicable To All Models Of Sany Concrete Pump/pump Truck /truck-mounted Pump |
|---|---|---|---|
| Specifications And Models: | DN200/DN230/DN260 | Specification Size: | 700*450*40mm |
| Hardness Of Wear-resistant Layer（HRC): | ≥65 | Alloy Hardness（HRA): | ≥85 |
| Useful Life（m³）: | 40000 | Material: | Super Wear-resistant Materials In Germany |
| Highlight: | Sany Concrete Pump Parts Wear Plate,Sany Concrete Pump Parts DN200,Sany Spectacle Wear Plate |
||
Product Description

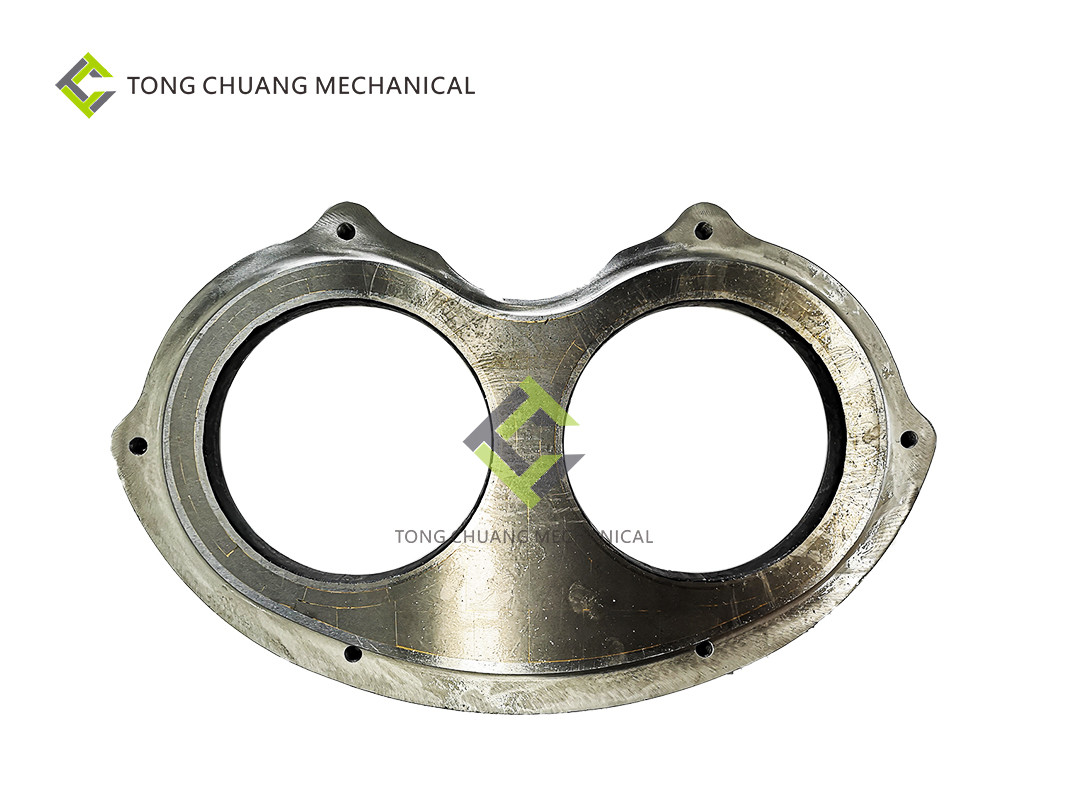

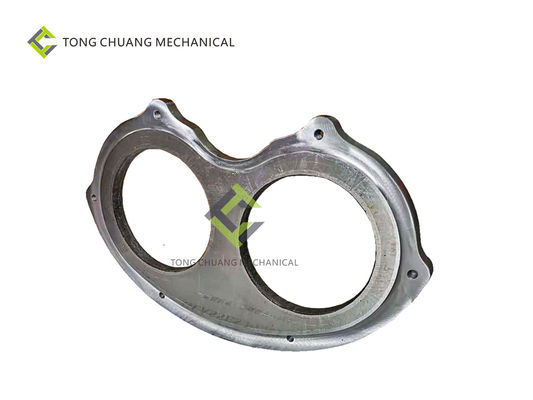

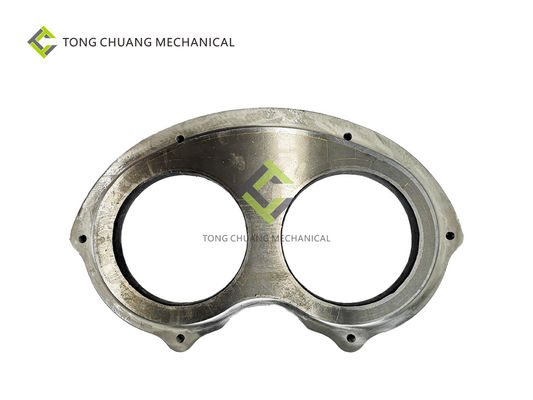

Sany Concrete Pump Parts Glasses Plate DN200/DN230/DN260
| Sany Concrete Pump Parts Glasses Plate DN200/DN230/DN260 | |
| Name | Concrete Pump Glasses Plate |
| Place of origin | Changsha, Hunan, China |
| Applicable model | Applicable to all models of Sany concrete pump/pump truck /truck-mounted pump |
| Specifications and models | DN200/DN230/DN260 |
| Specification size | 700*450*40mm |
| Weight | 24KG |
| Hardness of wear-resistant layer(HRC) | ≥65 |
| Alloy hardness(HRA) | ≥85 |
| Useful life(m³) | 40000 |
| Material | Super wear-resistant materials in Germany |
| Supply capacity | 3000 Pieces/month |
| Packing | Export standard packing 700*450*40mm |
| Minimum order | 1 |
| Price | $295 |
Product features and advantages:
1,The working face is strengthened by Sino-foreign joint venture hardfacing welding material, which is super wear-resistance.
2,Unique cemented carbide ring plate mosaic structure and special brazing process have good impact toughness.
3,The quality is stable and reliable, and the pumping volume is over 40,000 cubic meters (commercial concrete C30 )
Maintenance method:
1,Regularly check the gap between the spectacle plate and the cutting ring. Once the gap increases, immediately tighten the special nut or replace the worn parts to prevent mortar from entering the friction surface.
2,When the rubber spring loses elasticity, it needs to be replaced immediately.
3,After replacement, wash the contact surface between the spectacle plate and the cutting ring with water to prevent fine sand from adhering to the gap between the spectacle plate and the grinding surface of the cutting ring.
