Concrete Pump S Valve S Pipe S Tube Wear Resistant DN200/DN230/DN260

Product Details:
Place of Origin: Changsha, Hunan, China
Brand Name: ZOOMLION
Model Number: DN200/DN230/DN260
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $538
Packaging Details: Export standard packing 1100*500*300mm/pcs
Delivery Time: 7 work days
Payment Terms: D/P, T/T
Supply Ability: 3000 Pieces/month

Detail Information

Name: S Valve/S Pipe/S Tube Applicable Model: Applicable To All Models Of Zoomlion Concrete Pump/pump Truck/truck-mounted Pump
Specifications And Models: DN200/DN230/DN260 Hardness Of Wear-resistant Layer(HRC): ≥65
Useful Life(m³): 60000 Material: Super Wear-resistant Materials
High Light:

Concrete Pump s valve


Concrete Pump S Pipe


Wear Resistant Concrete S Tube

Product Description

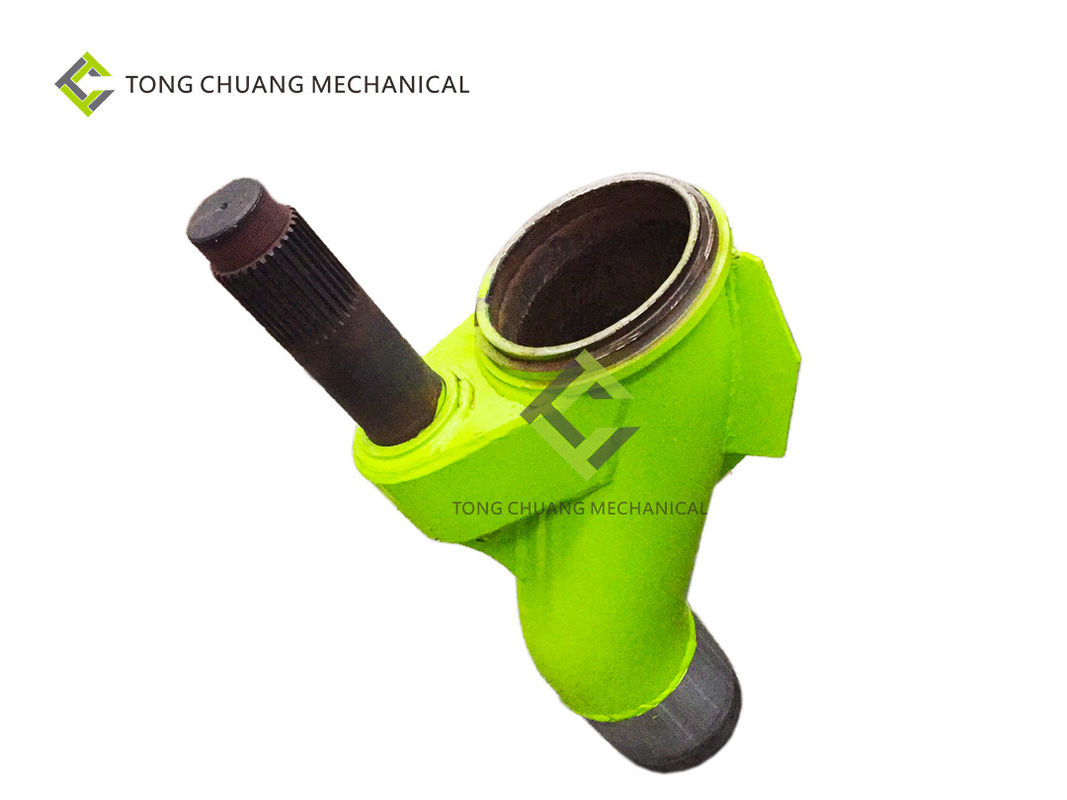

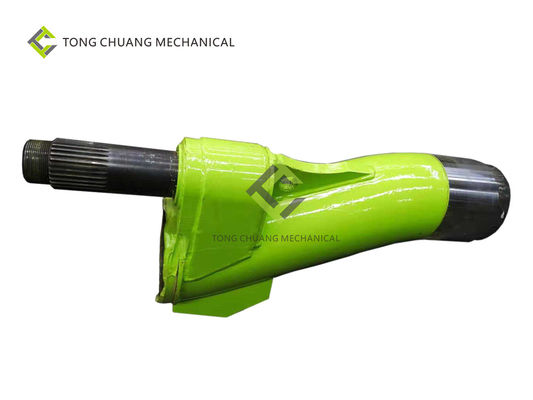

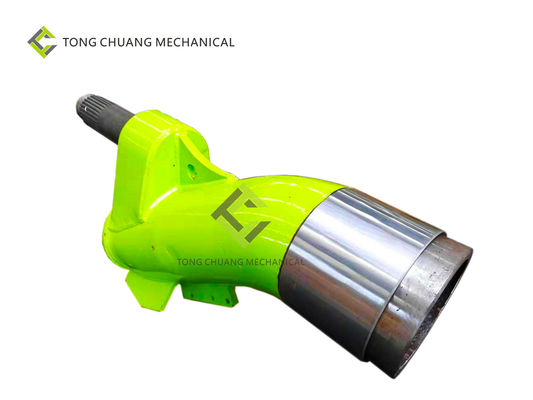

Zoomlion Concrete Pump Parts S Valve S Pipe S Tube DN200/DN230/DN260
Name S Valve/S Pipe/S Tube
Place of origin Changsha, Hunan, China
Applicable model Applicable to all models of Zoomlion concrete pump/pump truck/truck-mounted pump
Specifications and models DN200/DN230/DN260
Specification size 1100*500*300mm
Weight 134KG
Hardness of wear-resistant layer(HRC) ≥65
Useful life(m³) 60000
Material Super wear-resistant materials
Supply capacity 3000 Pieces/month
Packing Export standard packing 1100*500*300mm
Minimum order 1
Price $538


Product features and advantages:

1,The inner wall adopts ultra-fine grain technology of high wear-resistant welding material for surfacing, which is super wear-resistant and not afraid of impact.
2,The shaft head is a high-quality forging, normalized treatment, with high strength, good toughness and long fatigue life.
3,Surface nitriding treatment of spline, hardness 650HV-800HV, good wear resistance and long useful life.
4,The quality is stable and reliable, the pumping volume is over 60,000 cubic meters (commercial concrete C30 ).


Maintenance method:

1,Accurate alignment and firm fixation during assembly.
2,The accumulated materials in the hopper shall be cleaned in time to prevent the accumulated materials in the hopper from causing the abrasion of the S tube and the bottom of the cutting ring.
3,After the cutting ring reaches its service life, please replace it in time, so as to avoid the early wear of the surfacing layer at the big end of S-tube due to step erosion.
4,After the operation, please clean the inside of S tube in time.
